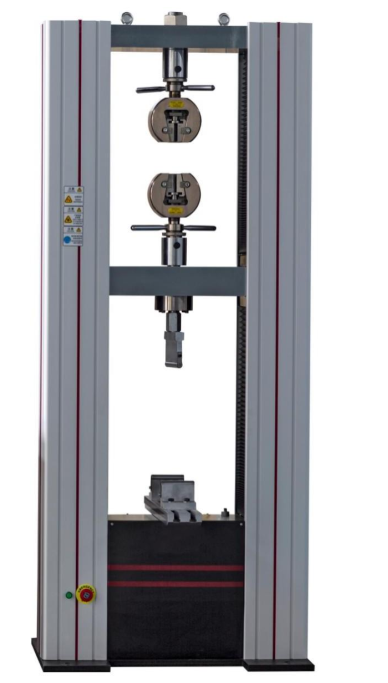

EBP UTM-5EW Computer Controlled Electronic Tensile Testing Machine (5kN (500kgf))

Max Load: 50kN (5000kgf)

Load Accuracy: Class 1 (optional: Class 0.5)

Testing Range: 2% ~ 100% F.S (optional: 0.4% ~ 100% F.S)

Load Resolution: 1/500000 F.S

Test Control Mode: 3 closed loop control, stress, strain and displacement

Deformation Measuring Range: 0.2% ~ 100% F.S

Deformation Accuracy: ±0.5%

Displacement Accuracy: ±0.5%

Displacement Resolution: 0.04 μm

Control System Parameters:

Control Mode: Force closed loop control, deformation closed loop control, displacement closed loop control

Force Control Speed Range: 0.001% ~ 5% F.S/s

Constant Force Control Accuracy: When the rate < 0.05% F.S/s, it is within ±2% of the set value; when rate ≥ 0.05% F.S/s, it is within ±0.5% of the set value

Deformation Control Speed Range: 0.001% ~ 5% F.S/s

Constant Deformation Control Accuracy: When the rate < 0.05% F.S/s, it is within ±2% of the set value; when rate ≥ 0.05% F.S/s, it is within ±0.5% of the set value

Main Frame Parameters:

Max Tensile Testing Space: 789 mm

Max Compression Testing Space: 789 mm

Test Width: 315 mm

Crosshead Speed Range: 0.001 ~ 500 mm/min

Overall Dimensions (LWH): 663x430x1700 mm

Power Supply: 1P 220V ±10%, 50-60Hz, 500W

Net Weight: About 180 kg

Operating Temperature: 0 to +38 °C (+32 to +100 °F)

Humidity Range: 10% to 90% non-condensing
