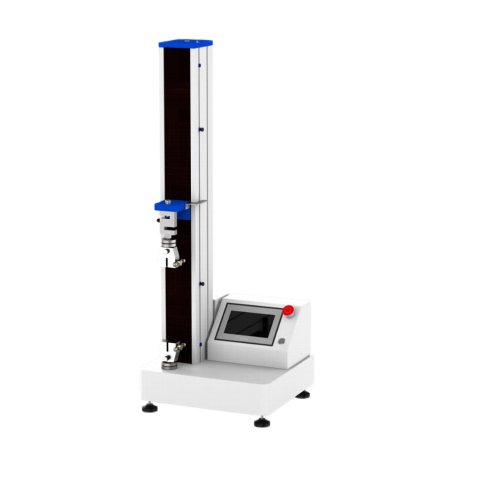

EBP UTM-2T Electronic Universal Testing Machine (2kN, 200kg)

Capacity

KN: 2kN

KG: 200kg

Structure: Double rail structure

Unit switching: G, Kg, lb, N, KN

Displacement unit switching: Inch, cm, mm

Test machine level: 1class

Effective force range: 0.4％～ 100％FS

Force accuracy: Within ±0.5%

Force decomposition: 1/200 000

Force Power magnification: X1, X2, X5, X10, X20, X50, X100., etc. Seven-speed automatic shifting

Displacement resolution: 0.05mm

Displacement accuracy: Within ±1%

Deformation measurement range: 2%～ 100%FS

Deformation indication accuracy: Within ±1%

Large deformation measurement range: (0～ 800)mm

Large deformation resolution: 0.05mm

Large deformation indication error limit: Within ±1%

Maximum test speed: 500mm/min, optional maximum 1000mm/min

Minimum test speed: 0.1mm/min

Speed accuracy: Within ±1%

Beam travel height

standard: No grip testing stroke： 920mm

optional: No grip testing stroke： 1320mm

Fixture configuration: One set of tensile grip； can choose other grips

Returning method: Manual or automatic selection, automatically return after the test ends or manually return to the initial position

Stop method

1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop

Safety devices

1.Mechanical limit switch protection

2.Emergency stop switch emergency brake

Overload protection: Over 10% of maximum load, automatic machine protection

Accessories: 1 power cord; 1 manual; 1 certificate

Optional accessories Anti-splash device (protective door); printer;software

Powder supply: 220V.AC/ 50HZ; 110V.AC/60HZ

Main host size/ weight

Standard model: Length*Width*Height: 450mm*400mm*1160mm / Around 50KG

Heightening model: Length*Width*Height: 450mm*400mm*1550mm / Around 55KG
