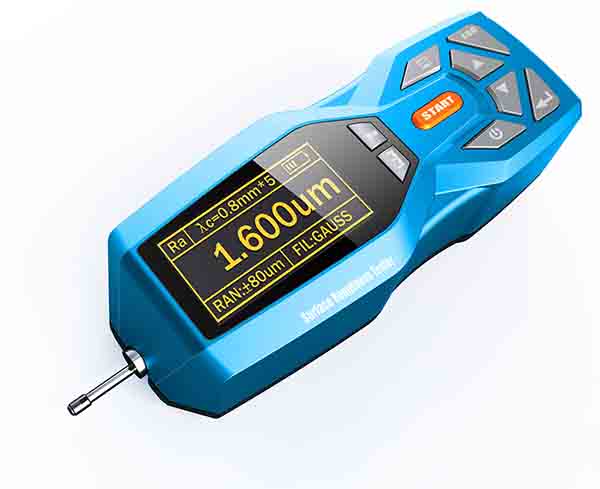

EBP SR-2 Surface Roughness Tester

20 Testing Parameters:Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;

Measuring Range:Ra: 0.005~16.000μm Rz: 0.02~160.00μm

Chiều dài mẫu: 0.25, 0.80, 2.50mm

Evaluation Length:(1~5)L

Maximum Drive Stroke:17.5mm/0.7inch

Indication Accuracy:0.001μm

Indication Error:≤(±10)%

Variability:<6%

Data Storage: 100 groups

Power:Rechargeable Li-battery

Relative Humidity:<90%

Working Temperature:-20°C~40°C

Size:158x63.5x46mm

Weight of Host:0.3kg
