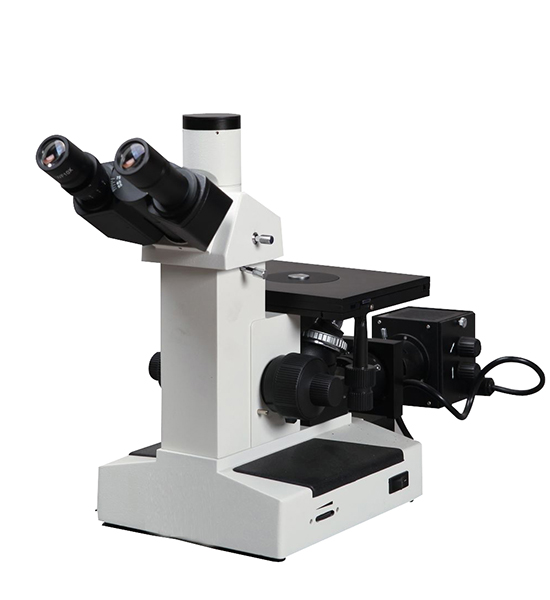

Objective: 10X/0.25, 20X/0.40, 50X/0.65, 100X/0.80 achromatic objective
Total magnification: 100X, 200X, 500X, 1000X
Head: Hinge type 45 degree inclined
Nosepiece / Turret: Four hole (inward ball positioning) / Five hole for optional purchase
Focus: Fine and coarse coaxial, with lock function, fine precision: 2um
Stage: Size: 180*150mm, moving range: 15*15mm Ø12 metal stage
Illumination: Pupil distance: 53-75mm 6V30W halogen bulb, brightness is adjustment With aperture diaphragm and centering field diaphragm
Polarizing set: Analyser can be rotatable and both polarizer and analyser can be move light path
Filter: Blue, green, yellow
Operation Environment:
l Indoor l Altitude: 2000m Max.
l Temperature: 5℃-40℃ (41℉-104℉)
l Humidity: 80% for 31℃ (88℉); 70% for 34℃ (93℉); 60% for 37℃ (99℉) ; 50% for 40℃ (104℉)
l Pollution: 2 (Refer to IEC664)
Weight: Net weight: 7kg; Gross weight: 8.5kg
