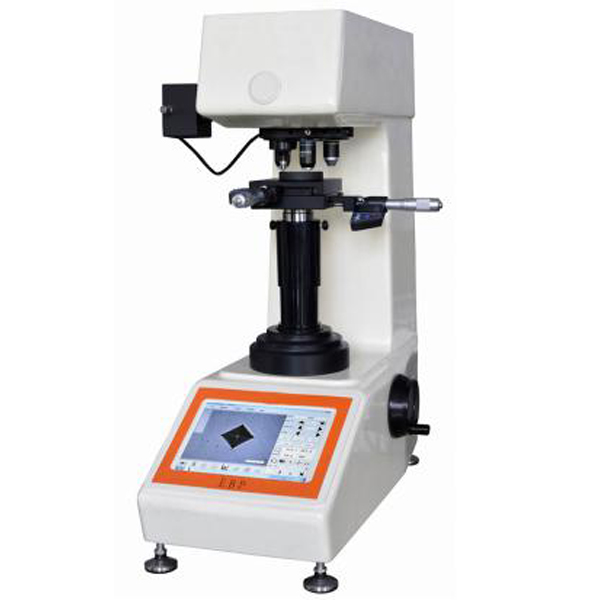

EBP DVS-5AT Intelligent Macro Vickers Testing System (1HV ~ 2967HV)

Test Force:

1. Kgf: 0.2kgf, 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf

2. N: 1.96N, 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N

Test Range:1HV~2967HV

Loading Method:Automatic (Loading/Dwell/Unloading)

Turret:Automatic Shifting turret

Computer:CPU: Intel I3, Memory: 2G, SSD: 32G

CCD Pixel:1.30 Million

Conversion Scale:HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW

Hardness Reading:Indentation Displaying and Automatic Measuring on Touch Screen

Data Output:WORD or EXCEL Report with Curve Chart

Objective:10× ，20× ，40×

Total Magnification:100× ，200× ，400×

Resolution:0.25μm，0.125μm，0.0625μm

Dwell Time:0~60s

Light Source:Halogen Lamp

Motorized X-Y Test Table:Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm

Max. Height of Specimen185mm

Throat:130mm

Power Supply:AC220V，50Hz

Execute Standard:ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2

Dimension:560×335×675mm，

Packing Dimension: 650×380×960mm

Weight:Net Weight: 48kg，Gross Weight: 62kg
