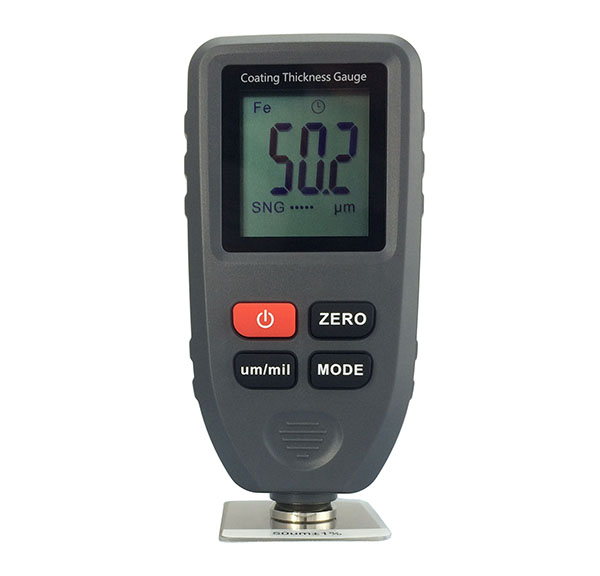

EBP CT-100B Coating thickness gauge / meter (F/N Probe)

Calibration:Points: ZERO/50/100/250/500/1000um

Units:um, mil

Minimum curvature radius convex: 1.5mm

Minimum curvature radius concave: 25mm

Minimum measuring area: Diameter 6mm

Power:One 9V battery

Operation Environment:Temperature:0~40℃(32~104℉) Humidity: 20%~90%RH

Size:130mm x 62mm x 32mm (4.88” x 2.44” x 1.26”)

Weight:100g(3.53oz)

Probe F

Principle:Magnetic Induction

Range:0~1300um 0~51.2mil

Accuracy:±(3%+2um) ±(3%+0.08mil)

Resolution:0.1um/0.01mil

Minimum thickness of substrate:0.5mm(0.02”)

Probe N

Principle:Eddy Current

Range:0~1300um 0~51.2mil

Accuracy:±(3%+2um) ±(3%+0.08mil)

Resolution:0.1um/0.01mil

minimum thickness of substrate:0.3mm(0.012”)
