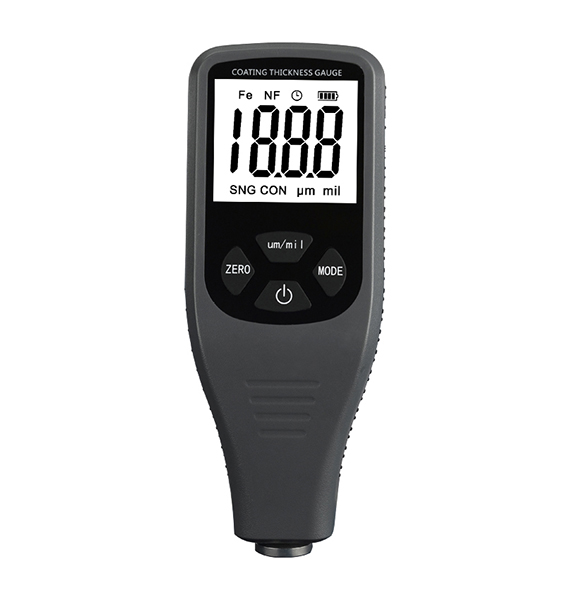

EBP CT-100 Coating Thickness Gauge

Resolution:0.1um/0.01mil

Calibration:Points: ZERO/50/100/250/500/1000um

Units:um, mil

minimum curvature radius convex: 1.5mm

minimum curvature radius concave: 25mm

minimum measuring area: Diameter: 6mm

Power:4 x AAA batteries

Operation EnvironmentTemperature:0~40℃(32~104℉) Humidity: 20%~90%RH

Size:155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

Weight: 125g(4.41oz)

Prob type F:

Principle:Magnetic Induction

Range:0~1300um 0~51.2mil

Accuracy:±(2.5%+1um) ±(2.5%+0.04mil)

minimum thickness of substrate:0.5mm(0.02”)

Prob type N:

Principle:Eddy Current

Range:0~1300um 0~51.2mil

Accuracy:±(2.5%+1um) ±(2.5%+0.04mil)

Resolution:0.1um/0.01mil

minimum thickness of substrate:0.3mm(0.012”)

Standard delivery:

Main unit1

Probe (Fe & NFe integrated)1

Calibration piece of pre-coated metal sheets2

Calibration piece of foils5

AAA battery4

Operating manual1

Warranty card1

Instrument case1
