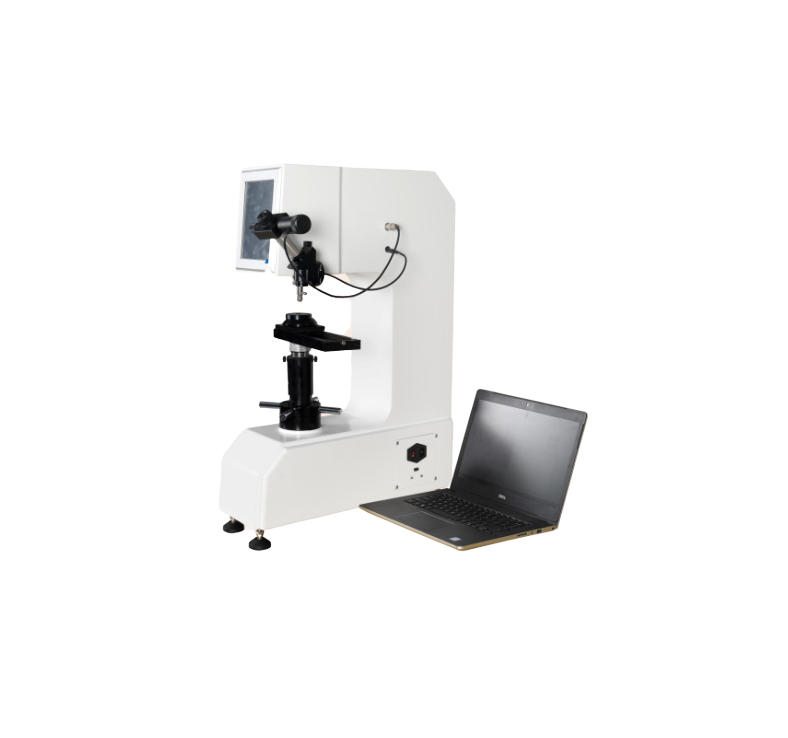

EBP BRV-250S Universal Hardness Testing System (5-250kgf)

Test force: 5-250kgf

Hardness scale:

HBW1/: 5, 10, 30kgf

HBW2.5/: 6.25, 15.625, 31.25, 62.5, 187.5kgf

HBW5/: 25, 62.5, 125, 250kgf;

HBW10/: 100, 250kgf

HR: A, B, C, D, E, F, G, H, K, L, M, P, R, S, V

HV5, HV10, HV20, HV30, HV50,

HV100, HV120

Dwell time: 1-99S

Minimum measuring unit: 0.1um

Magnification: Eyepiece: 15X; Objective lens: 2.5X (for Brinell), 5X (for Vickers); Total magnification: 37.5X, 75X

Display: touch screen LCD, USB

Power: AC220V, 50-60Hz
