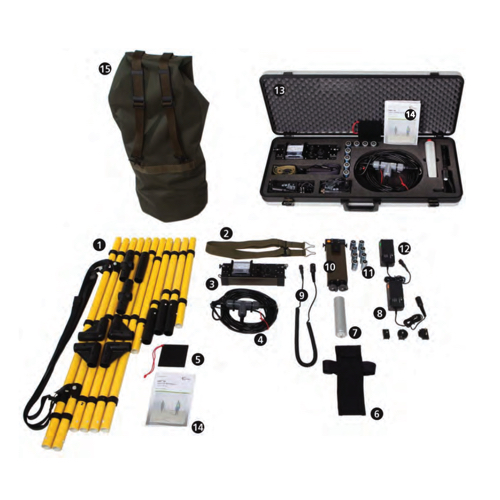

Ebinger UPEX® 740 M PI Large-Loop Metal Detection System

Power supply:

8 dry C- cells 1.5 V (IEC LR14)

Rechargeable Ni MH 1.2V / 4.5 Ah

Operating time*:

LR14 approx. 20 hrs at 20°C

Rechargeable NiMH cells approx.10 hrs at 20ºC

Temperature range: (operation) -20ºC to approx. +55ºC

Dimensions (W x H x D)

Electronics box: approx. 270 x 90 x 80 mm

Battery container: approx. 290 x 105 x 50 mm

Search head: approx. ø 2.550 mm

Weight

Electronics box: approx. 1.1 kg

Battery container: approx. 1.2 kg

Large loop: approx. 2.5 kg

Signal display: Iaudio signal and galvanometer indication 0 - 100

Sensitivity calibration: 3 ranges (low, medium, high)

* Depending on temperature and quality of the batteries
