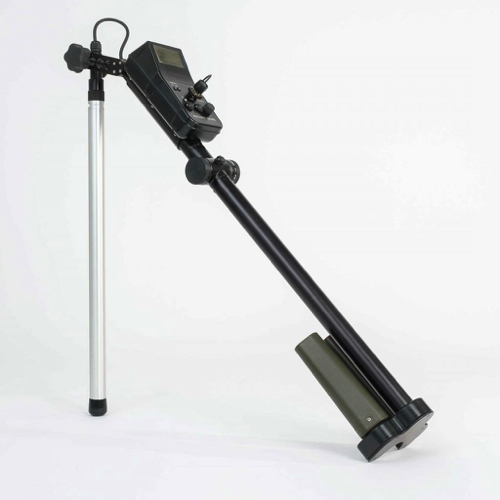

Ebinger MAGNEX® 120 LWD Magnetic Anomaly Locator/Bomb Locator (± 20,000 nT/m)

Power Supply Battery:

2 x rechargeable lithium battery pack

3 x Mono D-Cell LR20 1.5 V battery tubes (optional)

Operation time*: approx. 55 - 60 hours (lithium battery pack)

*depends on the temperature and quality

of the batteries / rechargeable batteries

used.

Temperature resistance

Storage: - 40 °C to + 85 °C

Operation: - 25 °C to + 65 °C

Optical indication: Pointer instrument (LC display with switchable backlight)

Scale ranges: ± 20 scales

Measurement value: Vertical difference of vertical components of magnetic flux

difference distance (base distance): approx. 430 mm

Measurement range: ± 20,000 nT/m

Bandwidth

Locator: DC 6 Hz

Sensor probe: 65 Hz

Acoustical indication

Loudness adjustable: Yes

Threshold: ± 2 scales

Modulation (Tremolo): Above ± 20 scales

Dimension: In military hard case (black): 1177 x 450 x 158 mm

Water protection: Humidity 95% at operating temperature (IP66)

Weight operational detector: approx. 3.4 kg (incl. lithium battery pack)

Storage weight: approx. 12.8 kg (incl. accessories)
