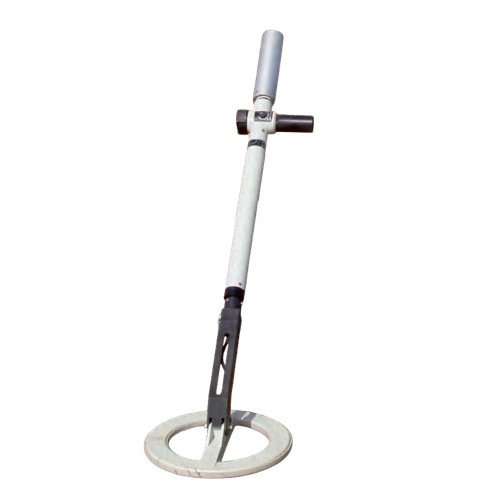

Ebinger EBEX® 422 GC Metal Detector For Humanitarian Mine And Battle Area Clearance

Power supply

Battery: 8 dry batteries C-cell 1.5 V (IEC no. LR14)

Rechargeable batteries: 8 NiMH C-cells 1.2 V / 4500 mA

Rechargeable battery pack: NiMH 9.6 V / 3.8 Ah

Operation time

Dry batteries LR14: appox. 20 h

NiMH C-cells, rechargeable: approx. 15 h

Battery pack, rechargeable: approx. 12 h

Temperature range (operation): -25° to +55° C

Dimensions

Search head: approx. Ø 230 mm

UXO search head, oval: approx. 420 x 280 mm

Battery container: approx. Ø 36 x 300 mm

Extension rod: approx. Ø 25 x 600 mm

Rechargeable NiMH battery pack: approx. Ø 45 x 190 mm

Electronic cylinder: approx. Ø 35 x 460 mm

Length and weight

Short detector version: approx. 1,000 mm

Long detector version: approx. 1,700 mm

Weight operational: approx. 2.2 kg

Equipment schedule in transit case: approx. 8.5 kg
