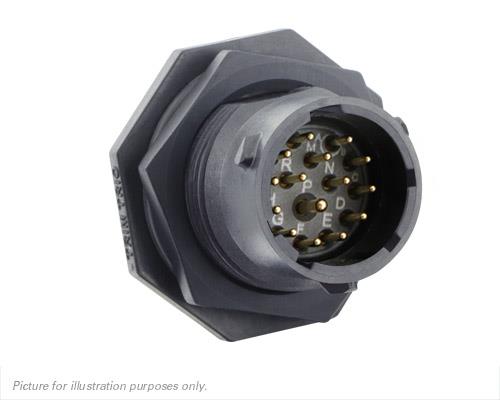

Eaton Souriau-Sunbank UTSX714D15PY32 Receptacles Jam nut receptacle & hold down clips,without backshell, with 15 male PCB contacts, IP68/69K in unmated conditions, keying Y

Color: Black

Coding: Y

IP Rating: IP69X

Shell Size: 14

Wire Gauge: 20 AWG, 16 AWG

Shell Style: Jam Nut

Mating Style: Bayonet

Mating Cycles: 250 Cycle

Contact Gender: Pin (Male)

Current Rating: +/- 5 A, +/- 12 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Plastic

Voltage Rating: 250 V, 600 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Solder Pin

Insert Arrangement: D15

Flammability Rating: UL 94 HB

Number of Positions: 15 Position
