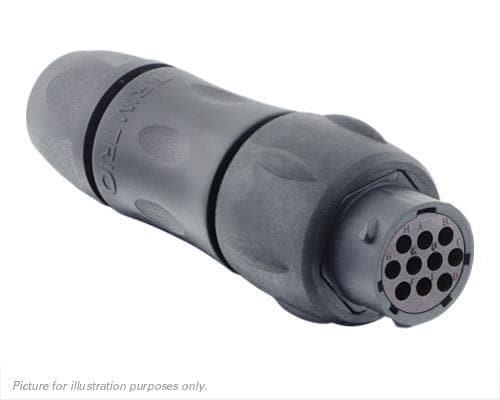

Eaton Souriau-Sunbank UTSX1JC1210SX Receptacles In line receptacle, with cable gland backshell, for 10 female contacts, IP68/69K, keying X

Color: Black

Coding: X

IP Rating: IP69X

Shell Size: 12

Wire Gauge: 20 AWG

Shell Style: In-Line

Mating Style: Bayonet

Mating Cycles: 250 Cycle

Contact Gender: Without Socket Contacts

Current Rating: 4.5 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: In-Line

Shell Material: Plastic

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Crimp

Insert Arrangement: 10

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position
