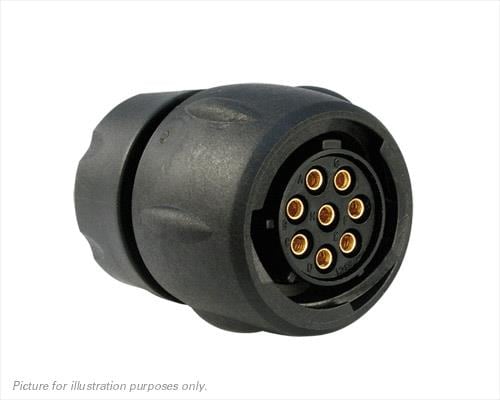

Eaton Souriau-Sunbank UTS6GN128S Plugs 8P STRAIGHT SOCKET PLUG SHELL SIZE 12

Diameter: 29.7 mm

IP Rating: IP69X

Shell Size: 12

Shell Style: Plug

Unit Weight: 19 g

Mating Style: Bayonet

REACH - SVHC: Details

Mating Cycles: 250

Cable Diameter: 10 mm

Contact Gender: Without Socket Contacts

Current Rating: 10 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Free Hanging

Shell Material: Plastic

Voltage Rating: 500 V

Housing Material: Thermoplastic (TP)

Termination Style: Crimp

Insert Arrangement: 12-8

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position
