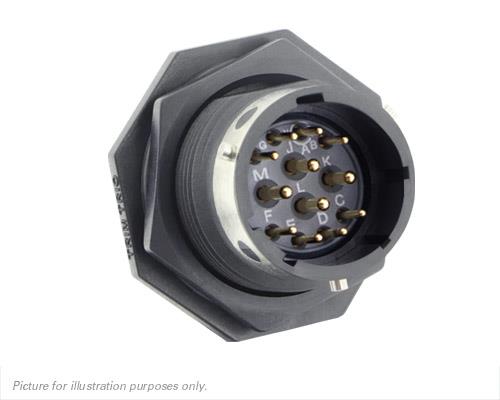

Eaton Souriau-Sunbank UTGX714D12P Receptacles Jam nut receptacle, without backshell, with 12 male PCB contacts, IP68/69K in unmated conditions

Color: Black

IP Rating: IP65, IP67, IP69K

Shell Size: 14

Shell Style: Jam Nut

Thread Size: 1 in-20 UNEF

Mating Style: Bayonet

Mating Cycles: 500 Cycles

Contact Gender: Pin (Male)

Current Rating: +/- 5 A, +/- 10 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Polyamide (PA)

Voltage Rating: 250 V, 600 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Solder Pin

Insert Arrangement: D12

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position
