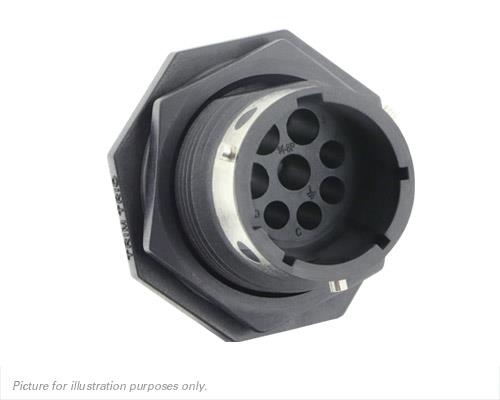

Eaton Souriau-Sunbank UTGX7148P Receptacles Jam nut receptacle, without backshell, for 8 male contacts, IP68/69K

Color: Black

IP Rating: IP65, IP67, IP69K

Shell Size: 14

Shell Style: Jam Nut

Thread Size: 1 in-20 UNEF

Mating Style: Bayonet

Mating Cycles: 500 Cycles

Contact Gender: Without Pin Contacts

Current Rating: +/- 5 A, +/- 25 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Polyamide (PA)

Voltage Rating: 600 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Crimp

Insert Arrangement: 14-08

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position
