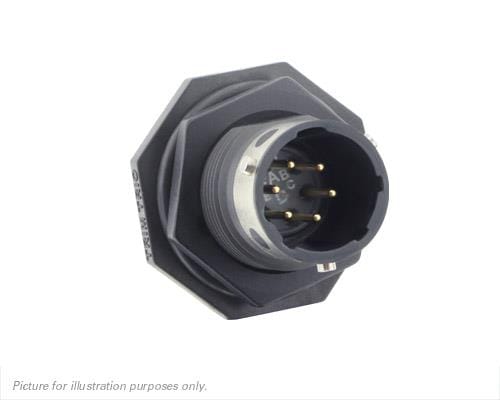

Eaton Souriau-Sunbank UTGX710E6P Receptacles Jam nut receptacle, without backshell, with 6 male solder contacts, IP68/69K in unmated conditions

Color: Black

Height: 27 mm

Diameter: 15.2 mm

IP Rating: IP65, IP67, IP69K

Shell Size: 10

Wire Gauge: 20 AWG

Shell Style: Jam Nut

Thread Size: 11/16-24 UNEF

Mating Style: Bayonet

REACH - SVHC: Details

Mating Cycles: 500 Cycles

Contact Gender: Pin (Male)

Current Rating: 6 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Polyamide (PA)

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Solder Cup

Insert Arrangement: E6

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position
