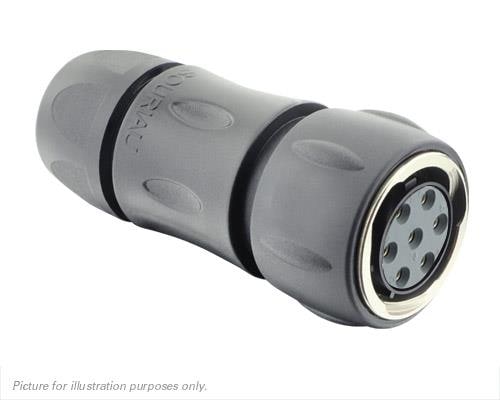

Eaton Souriau-Sunbank UTGX6JC14E7S Plugs Plug, with cable gland backshell, with 7 female solder contacts, IP68/69K in unmated conditions

Color: Black

Diameter: 34.6 mm

IP Rating: IP65, IP67, IP69K

Shell Size: 14

Wire Gauge: 16 AWG

Shell Style: Straight

Thread Size: 13/16-20 UNEF

Mating Style: Bayonet

REACH - SVHC: Details

Mating Cycles: 500 Cycles

Contact Gender: Socket (Female)

Current Rating: 12 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Free Hanging

Shell Material: Polyamide (PA)

Voltage Rating: 600 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Solder Cup

Insert Arrangement: E7

Flammability Rating: UL 94 V-0

Number of Positions: 7 Position
