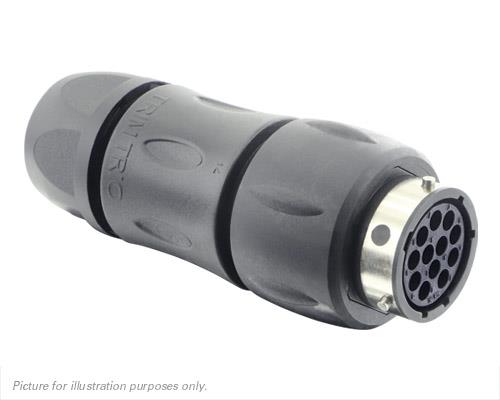

Eaton Souriau-Sunbank UTGX1JC1492S Receptacles In line receptacle, with cable gland backshell, for 12 female contacts, IP68/69K

Color: Black

IP Rating: IP65, IP67, IP69K

Shell Size: 14

Wire Gauge: 16 AWG

Shell Style: In-Line

Mating Style: Bayonet

Mating Cycles: 500 Cycles

Contact Gender: Without Socket Contacts

Current Rating: 10 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Free Hanging

Shell Material: Polyamide (PA)

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Crimp

Insert Arrangement: 92

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position
