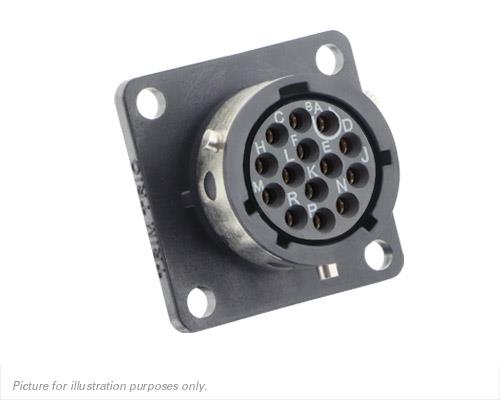

Eaton Souriau-Sunbank UTGX012E14S Receptacles Square flange receptacle, without backshell, with 14 female solder contacts, IP68/69K in unmated conditions
ModelUTGX012E14S
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
IP Rating: IP65, IP67, IP69K
Shell Size: 12
Wire Gauge: 20 AWG
Shell Style: Square Flange
Thread Size: 11/16-24 UNEF
Mating Style: Bayonet
Mating Cycles: 500 Cycles
Contact Gender: Socket (Female)
Current Rating: 4.5 A
Housing Gender: Female
Mounting Angle: Straight
Mounting Style: Panel
Shell Material: Polyamide (PA)
Voltage Rating: 250 V
Contact Plating: Gold
Contact Material: Brass
Termination Style: Solder Cup
Insert Arrangement: E14
Flammability Rating: UL 94 V-0
Number of Positions: 14 Position
