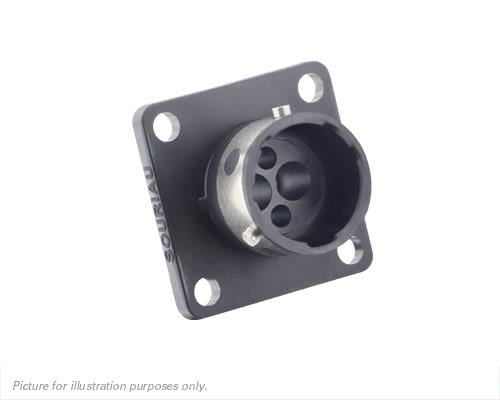

Eaton Souriau-Sunbank UTGX0102W2P Receptacles Square flange receptacle, without backshell, for 4 male contacts, IP68/69K

Color: Black

IP Rating: IP65, IP67, IP69K

Shell Size: 10

Wire Gauge: 20 AWG, 12 AWG

Shell Style: Square Flange

Thread Size: 9/16-24 UNEF

Mating Style: Bayonet

Mating Cycles: 500 Cycles

Contact Gender: Without Pin Contacts

Current Rating: 7.5 A, 26 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Polyamide (PA)

Voltage Rating: 250 V, 600 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Crimp

Insert Arrangement: 2W2

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position
