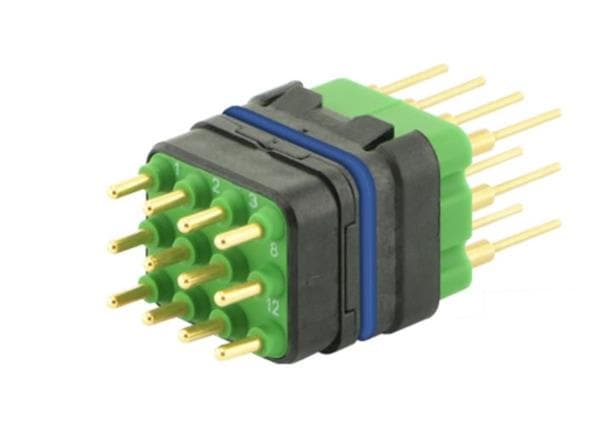

Eaton Souriau-Sunbank 8MQ2M1220RNES046 Modular Connectors - Push Pull MQuick module, sealed, with male straight PCB contacts, delivered with cap
Model8MQ2M1220RNES046
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
MIL Type: EN4165
Contact Size: 20
Contact Gender: Pin (Male)
Current Rating: 7.5 A
Mounting Angle: Straight
Mounting Style: Cable
Number of Rows: 3 Row
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Wire Gauge - AWG: 24 AWG to 20 AWG
Termination Style: PC Pin
Number of Positions: 12 Position
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
