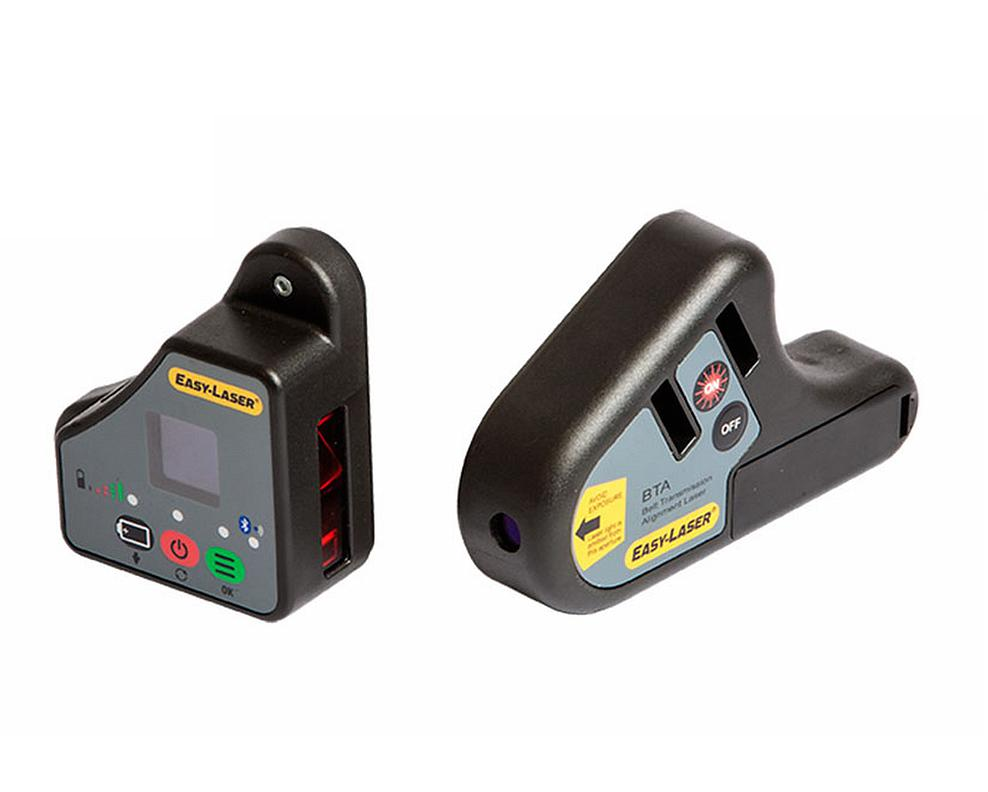

EASYLASER XT190 Belt alignment

DETECTOR FOR BELT ALIGNMENT
Name: Wireless detector for belt alignment, XT
Part No.: 12-1054
Measurement distance: Up to 3 m [9.8’] between transmitter and detector
Measurement range: Axial offset: ±3 mm [0.12”]. Angular value: ±8°
Display type: Yellow OLED 96x96 pixels
Connection: BT wireless technology
Battery type: Li-Po
Battery operation: 5 hours continuously
Material: ABS plastics / Anodized aluminium
Dimensions: WxHxD: 95x95x36 mm [3.7x3.7x1.4”]
Weight: 190 g [6.7 oz]

LASER TRANSMITTER FOR BELT ALIGNMENT
Name: Laser transmitter for belt alignment, XT
Part No.: 12-0309
Sheave diameters: Ø60 mm [2.5”] and larger
Laser class: 2
Laser wavelength: 635–670 nm
Beam angle: 60°
Accuracy laser plane – Reference plane:
Parallelity: < 0.05°, Offset < 0.2 mm [0.008”]
Battery type: 1xR6 (AA) 1.5 V
Battery operation: 8 hours continuously
Material: ABS plastics / Hard anodized aluminium
Dimensions: WxHxD: 145x86x30 mm [5.7x3.4x1.2”]
Weight: 270 g [9.5 oz]

A COMPLETE SYSTEM CONTAINS
1 Laser transmitter
1 Detector unit
2 Targets
1 Charger (100-240 V AC) with cable
1 USB memory stick with documentation
1 Carrying case
