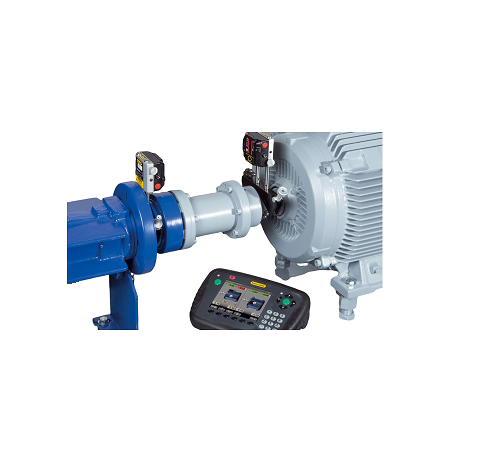

EASYLASER E540 Laser Shaft Alignment System (10m, 0.001 mm, wireless)

System:

Relative humidity: 10–95%

Weight (complete system): 7.2 kg [15.9 lbs]

Carrying case WxHxD: 500x415x170 mm [19.7”x16.3”x6.7”]

Measuring units :ELM40 / ELS40

Type of detector: True PSD 30 mm [1.2”]

Wireless communication Class I Bluetooth® wireless technology

Operating time: >4 h

Resolution: 0.001 mm [0.05 mils]

Measuring errors: ±1% +1 digit

Measurement range: Up to 10 m [33 feet]

Type of laser: Diode laser

Laser wavelength; 635–670 nm

Laser class: Safety class II

Laser output: <1 mw="" span="">

Electronic inclinometer: 0.1° resolution

Thermal sensors: -20–60 °C

Environmental protection: IP class 65

Temperature range: -10–50 °C

Housing material Anodized aluminium / ABS plastics

Dimensions WxHxD: 69.0x61.5x41.5 mm [2.72”x2.42”x1.63”]

Weight 172 g [6.0 oz]

Display unit E52

Type of display/size VGA 5.7” colour screen, backlit LED

Displayed resolution: 0.001 mm / 0.05 thou

Internal battery (fixed) Heavy duty Li Ion chargeable

Operating time Approx. 30 hours (at typical user cycle)

Temperature range: -10–50 °C

Connections USB A, USB B, Easy-Laser® units, Charger

Wireless communication Class I Bluetooth® wireless technology

Internal memory >100 000 measurements can be saved

Help functions Calculator, Unit converter

Environmental protection IP class 65

Housing material PC/ABS + TPE

Dimensions WxHxD: 250x175x63 mm [9.8”x6.9”x2.5”]

Weight: 1020 g [2.3 lbs]

Cables

Charging cable (splitter cable) Length 1 m [39.4”]

USB cable Length 1.8 m [70.8”]

Brackets etc.

Shaft brackets Type: V-fixture for chain, width 18 mm [0.7”].

Shaft diameters: 20–450 mm [0.8”–17.7”]

Material: anodised aluminium

Rods Length: 120 mm, 60 mm [4.72”, 2.36”] (extendable)

Material: Stainless steel

EasyLink™ Data base software

System requirements: Windows® XP, Vista, 7, 8. For the export functions, Excel

2003 or newer must be installed on the PC.

A complete system contains

1 Measuring unit M

1 Measuring unit S

1 Display unit

2 Shaft brackets with chains

2 Extension chains

4 Rods 120 mm [4.72”]

4 Rods 60 mm [2.36”]

1 Measuring tape 3 m [9.8’]

1 USB memory with EasyLink™ PC software

1 USB cable

1 Charger (100–240 V AC)

1 DC split cable for charging

1 DC to USB adapter, for charging

1 Shoulder strap for display unit

1 Quick reference manual

1 CD with documentation

1 Carrying case
