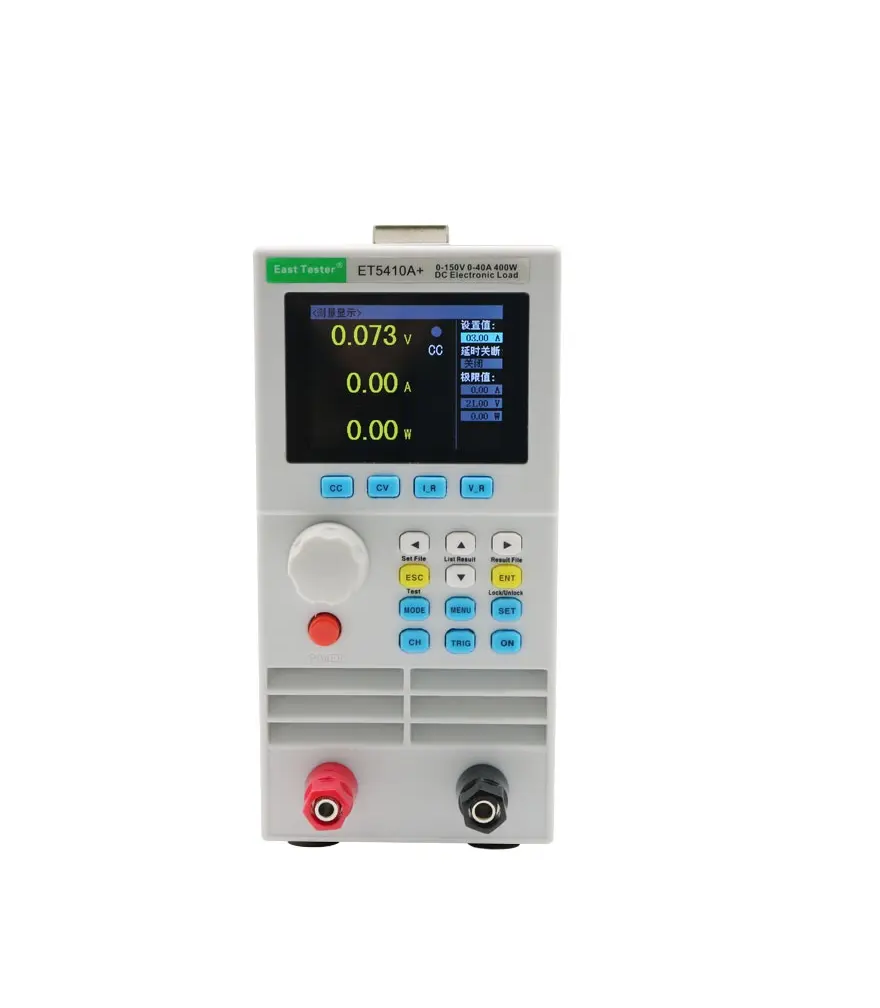

Specifications
- Rated input:
+ Power: 400W
+ Input voltage: 0-150V
+ Input current: 0-40A
- Range:
+ CV mode: 0.1~19.999V,0.1~150.00V
+ CC mode: 0~3.000A,0~40.00A
+ CR mode: 0.05Ω~1 kΩ，1 kΩ~4.5kΩ
+ CP mode: 0~400W
- Tran Test
+ Mode: CC，CV
+ T1&T2: 50ms~60s
- Battery Test:
+ Discharge mode: CC，CR
+ Maximumdischarge capacity: 9999Ah
+ Resolution: 1mA，10mA，10mΩ，100mΩ
- Range of measurement:
+ Voltageread-back value: 0~19.999V,0 ~150.00V
+ Currentread-back value: 0~3.000A,0~40.00A
+ Powerread-back value: 400W
- Scope of protection:
+ Over Voltage Protection(OV): ＞21V OR ＞155V over voltage protection
+ Over Current Protection(OC): ＞3.1 or ＞42A over current protection
+ Over Power Protection(OP): 410W
+ Over Temperature Protection: 85℃
General technical specifications:
- Power supply voltage: 100Vac±10%~240Vac±10%，50/60Hz
- Display: 2.8-inch TFT LCD screen with resolution of 320×240
- Operating temperature: 0℃ to 40℃
- Storage temperature: -10℃ to 70℃
- Relative humidity: < 80%
- Interface: standard USB, optional RS232(or 485)
- Size: 90mm×190mm×300mm (width × height × depth)
Standard accessories:
- Three-core power cord * 1
- Power fuse * 2
- User manual*
