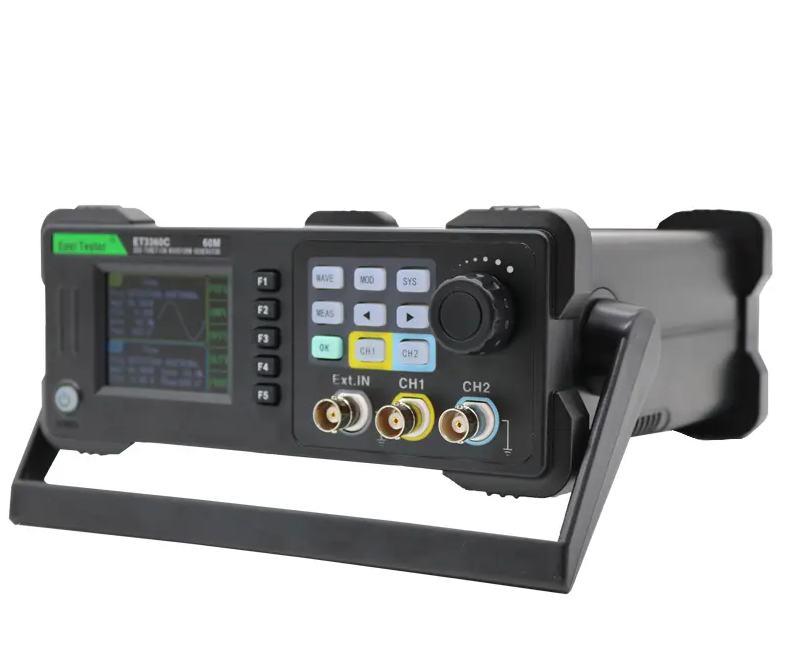

Frequency Characteristics:
Sine: 1μHz ~ 40MHz
Square: 1μHz ~ 15MHz
Triangle: 1μHz ~ 15MHz
Pulse: 100μHz ~ 6MHz
Arbitrary: 1μHz ~ 6MHz
Noise （-3dB): 7MHz Bandwidth
Frequency Resolution: 1μHz
Frequency Accuracy: ±5ppm
Frequency Stability: ±1ppm/3hour
Waveform Types: Sine, square, triangle, pulse, noise and arbitrary waves (including DC). There are 32 kinds of arbitrary waves and 50 kinds of user-defined waves.
Waveform Length: 8192 points
Waveform Sampling Rate: 200 MSa/s
Waveform Vertical Resolution: 13 bits
Sine Wave Characteristics:
Harmonic Distortion: ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
Total Harmonic Distortion: <0.8%(20Hz ~ 20kHz, 0dBm)
Square Wave Signal Characteristics:
Rise/Fall: <20ns
Overshoot: <5%
Duty Cycle: freq<100kHz: 1%~99%; 100kHz≤freq<5MHz: 20% ~ 80%; 5MHz≤freq: 40% ~ 60%(0.1% resolution)
Pulse Wave Characteristics:
Pulse Width: Min 20ns; 1ns resolution
Edge Transition Time: Min 20ns;
Overshoot: <5%
Jitter: 6ns+0.1% Period
Ramp Wave Characteristics:
Linearity Degree: ≥98%(0.01Hz~10kHz)
Symmetry: 0.0 ~ 100.0%(resolution 0.1%)
Output Characteristics:
Amplitude Range: 10MHz≤freq＜30MHz, 2mVpp ~10Vpp
Offset Adjusting Range: 2mV<Output Amplitude≤0.1V: ±0.250Vpk，ac + dc
Phase Adjusting Range: 0~359.9°
Frequency measurement range: 1Hz ~ 100MHz
General Technical Specifications:
Supply voltage:220V±10%，45~65Hz，Or 110V±10%，45~65Hz
Power consumption:< 15W
Types:3.5-inch TFT LCD screen，Resolution480×320，16M color
Environment:Operation 10 ℃ ~ +40 ℃、Non-operation -10℃~+60℃
Humidity range:Within the range of 0 ~ 40 ℃，≤90％ relative humidity
Interface:RS232,USB Device;USB Host(optional)
Display：3.5 inch TFT LCD screen, 480 x 320 resolution
Size：265 * 105 * 305 mm (width x height x deep)
Weight：2.6 kg
Accessories
Standard accessories:
1 piece of 30A51 three-wire power line;
1 piece of 33A52 BNC coaxial cable;
1 CD-ROM
1User guide.
Optional accessories:
BNC alligator clip line (33P01);
Cabinet installation suit (32P02);
RS232 serial line (32P04);
USB data line (32P05).
