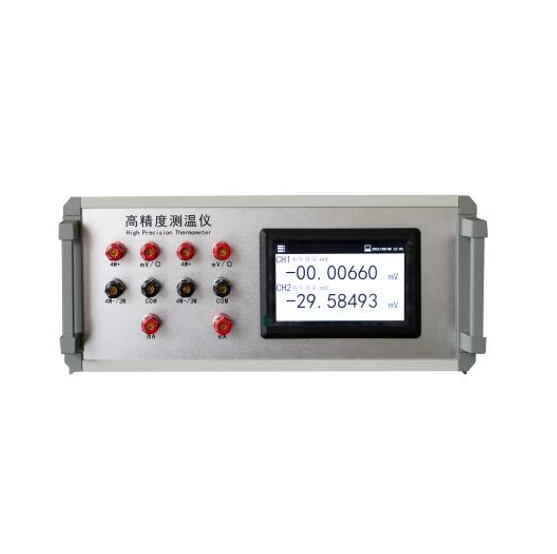

EAST TESTER ET3132 High-Precision Bench Thermometer (0~1600Ω, -200~850℃, 2CH)

Channels: Double Channels

Resistance Range: 0~1600Ω

RTD Range: -200~850℃

Resistance Measurement: Supporting 2 wires/ 4 wires

RTD Measurement: Supporting 3wires/ 4 wires

RTD Sensor’s type: Supporting conventional sensor types: Pt10、Pt25、Pt50、Pt100、Pt200、Pt500、Pt1000、Pt100-392、Pt100-JIS、Cu10、Cu50、Cu100、Ni120 and 2 standard sensors’ type : Pt25、Pt100， Users can define name of sensor’s type by their own.

Thermocouple’s Cold Junction (only support ET3131 Band 3132B): The temperature of cold junction can be adjusted automatically or by manual

Thermocouple’s type (only support ET3131 Band 3132B): Supporting conventional thermocouples:S、R、K、J、B、T、E、N、L、U、XK、BP and 1 standard S-type thermocouple Users can define name of sensor’s type by their own.

Temperature Curve Display: Support temperature curve display;Save 10 sets of historical data and curves;Read historical data and curves

Temperature Unit: ℃、℉、K

Display Screen: 5 -inches TFTLCD touch screen ，resolution rate 800×480，color 16M

Communication Port: Supporting RS485 and USB

General Specification

Power Supply：AC 110/220V，50~60Hz

Power：<10W

Display：5 -inches TFTLCD touch screen ，resolution rate 800×480，color 16M 。

Dimension ：350mm×340mm×55mm (L×W×H)

Communication port ：RS485and USB
