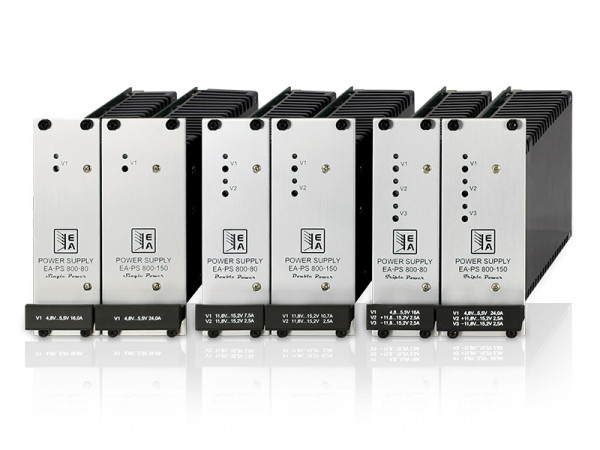

EA Elektro-Automatik EA-PS 824-240 Single 19“ plug-in DC power supplies as Euro cassette (24V/10A; 240 Watt)

Output voltage DC: 24 V (23.5...28.5 V)

Load regulation 0...100% Iout : <0.05%

Line regulation 100% Iout : <0.05%

Ripple LF : <40 mVpp

Last Regulation time 10-100% load : <0.5 ms

OVP adjustment : 29.0...33.0 V

Output current / power : 10 A / 240 W

Output current limit : <19.2 A

Input voltage: AC 90...264 V, 1ph+N, 45...65 Hz, PF = >0.99

Input voltage: DC 90...360 V

Efficiency: bis / up to 92%

Input surge current limitation: <23 A durch / by NTC

Input voltage spike suppression: durch / by VDR

Hold-up time: >20 ms

Output power: 108.....240W

Voltage regulation with sensing: 0.5 V max.

Power fail signal: after >5 ms

Control input: external on-off

Power share with ASF signal: optional

Operation temperature: 0...70 °C

Temperature / Derating:

- with natural convection: >45 °C 6.4 W/°C

- with forced cooling 1 m/s: >60 °C 12 W/°C

Storage temperature: -40 °C ... +85 °C

Relative humidity: <90%, n-c.

Safety: EN 60950, IEC 950

EMI emission: EN 61000-6-3

EMI noise immunity: EN 61000-6-2

Dimensions (WxHxD): 12TE/HP x 3HE/U x 162 mm

Weight: 930g
