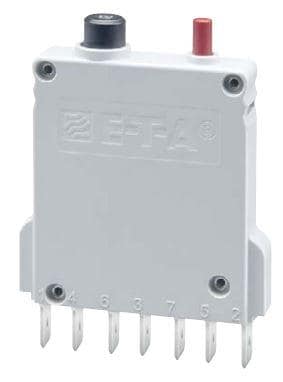

E-T-A Circuit Breakers 3600-P10-SI-12A Thermal-Magnetic Single pole thermal-magnetic circuit breaker with tease-free, trip-free, snap action mechanism and two button operation (M-type TM CBE to EN 60934). Designed for plug-in mounting with E-T-A sockets 17-P10-Si, 23-P10-Si, 63-P10-Si; or

Width: 40.8 mm

Height: 11.5 mm

Length: 51 mm

Illuminated: Non-Illuminated

Actuator Type: Pushbutton

Current Rating: 12 A

Mounting Style: Panel Mount

Voltage Rating: 65 VDC, 240 VAC

Number of Poles: 1 Pole

Termination Style: Blade

Voltage Rating AC: 240 VAC

Voltage Rating DC: 65 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C
