E-survey ST6 Display (For EAS301 Pro Auto Steering System)

Accuracy: Dry land: 2.5 cm(≤ 9 km/h); Paddy land: 5 cm(≤ 9 km/h)

Line acquisition distance: <10 m

Vehicle velocity range: 0.1 - 18 km/h

Correction data source: GSM, Radio, L-band, SBAS

NMEA output: GGA, GSV, VTG, GSA, ZDA, RMC, GST

Data formats: RTCM3.X, CMR, ROX

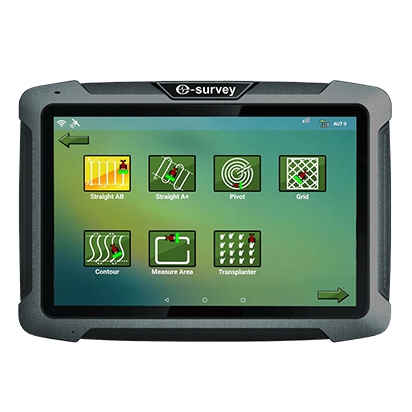

ST6 Display

Processor: Qualcomm SDM450, Octa-core ARM/Cortex-A53 64-bit CPU @ 1.8 GHz

OS: Android 9.0

RAM: 2 GB

ROM: 16 GB

Input voltage: 7 - 36 V dc

Dimension: 270 mm × 190 mm × 40 mm

Weight: 1.3 kg

Button: 1 x power button

Battery: None

Humidity: 90%

Operating temperature: -20°C - +70°C

Storage temperature: -30°C - +85°C

Water/dust proof: IP65

Vibration: ISO 16750/MIL-STD-810G
