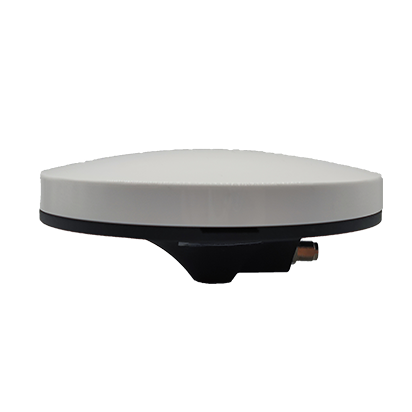

E-survey MC5 ECU (For EAS301 Pro Auto Steering System)

Accuracy: Dry land: 2.5 cm(≤ 9 km/h); Paddy land: 5 cm(≤ 9 km/h)

Line acquisition distance: <10 m

Vehicle velocity range: 0.1 - 18 km/h

Correction data source: GSM, Radio, L-band, SBAS

NMEA output: GGA, GSV, VTG, GSA, ZDA, RMC, GST

Data formats: RTCM3.X, CMR, ROX

MC5 ECU

Channels: 1100

Satellites tracking:

GPS: L1CA/L1P/L1C/L2P/L2C/L5

BDS: B1I/B2I/B3I/B1C/B2a/B2b/ACEBOC

GLONASS: G1/G2/G3, P1/P2

GALILEO: E1/E5a/E5b/E6/ALTBOC

QZSS: L1CA/L1C/L2C/L5/LEX

IRNSS: L5

SBAS: L1/L5

Update rate: 10 Hz standard, 20 Hz optional

Horizontal positioning accuracy:

Single: < 1.2 m (RMS)

DGNSS: < 0.3 m (RMS)

SBAS: < 0.3 m (RMS)

RTK: 8 mm+1 ppm (RMS)

Water/dust proof: IP67

Input voltage: 9 – 28 V dc (ISO 16750 4.2 B-H)

Dimension: 162.2 mm × 162.8 mm × 70.2 mm

Material: Magnesium alloy

Weight: 1284±20 g
