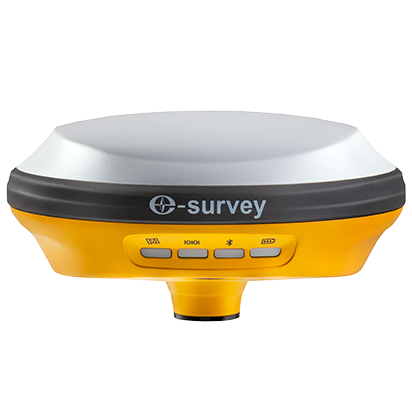

E-survey E100-H Network RTK Receiver

Satellites Tracking

GPS: L1CA/L1P/L1C/L2P/L2C/L5

BDS: B1I/B2I/B3I/B1C/B2a/B2b/ACEBOC

GLONASS: G1/G2/G3, P1/P2

GALILEO: E1/E5a/E5b/E6/ALTBOC

QZSS: L1CA/L1C/L2C/L5/LEX

IRNSS: L5

SBAS1: L1, L5

L-Band: Atlas H10/H30/Basic

Channels: 800

Signal Reacquisition: < 1 sec

Cold Start: < 60 sec

Warm Start: < 30 sec

Hot Start: < 10 sec

RTK Signal Initalizaton: < 8 sec

Initalizaton Reliability: > 99.9%

Update Rate 10 Hz standard, up to 50 Hz

Operation System: Linux

Internal Memory: 8 GB (32GB Customizable)

Battery: Rechargeable and built-in Lithium-ion battery, 7.2 V ~ 6800 mAh

Dimension: Φ148 mm x H60 mm

Weight: 900±5 g

Operating Temperature: -40℃ ~ +65℃

Storage Temperature: -45℃ ~ +80℃

Water/Dust Proof: IP67

Shock Survive a 2 m drop on concrete floor

Vibration: Vibration resistant

Humidity Up to 100%

Indicators Satellites, datalink, battery, Bluetooth

Button: Power button, short press to voice broadcast status

Certificate: CE, FCC, NGS Calibration
