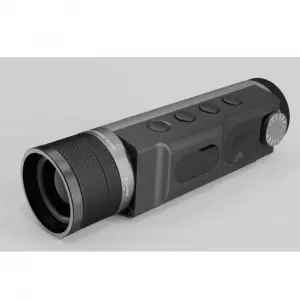

DYT TM-384 Thermal Imaging Monocular (384×288)

Sensor Resolution:384×288

Pixel Size: 17μm

NETD:＜40mK

Focal Length:25mm(F1.0)

Field of view:14.9° x 11.2°

Display:800×600 OLED Screen

Detection Range:400m

Electronic Zoom:1X, 2X, 4X, 8X

Photograph:800*600，BMP Format

Imaging Mode:Red Heat, Black Heat, White Heat, Green Heat, Iron Red

Diopter Adjustment:Support

Hot Spot Tracking:Support

Laser Ranging:Compatible

Operating Temperature:-20℃~60℃

Waterproof:IP65

Battery:4500mAh Li Battery

Charging/Data Interface:Type-C

Output:Support Mini HDMI、Micro SD （Maximum Expansion 32GB)

Size:178.5x51x47 mm

Overview

   TM-384 Thermal imaging monocular is specially designed for outdoor and law enforcement purpose, equipped with advanced 384×288 resolution detector and the patented image processing technology, the TM-384 captures sharp imaging and is packed with powerful features like image and video recording, smooth zoom, pseudo-color adjustment.
