Resolution: 256´192
Spectral range: 8-14 um
Pixel Pitch: 12um
NETD: <50mK @25℃, F#1.0
Frame Rate: 25Hz
Working temperature: -20-60℃
Weight: <90g
Interface: USB, HDMI
Eyepiece: LCOS 0.2′ screen
Resolution of 720´576
Laser indication: Support
Electronic amplification: 1x/2x/4x electronic amplification is supported
Lens: 10.8mm/F1.0
Temperature measuring accuracy: ±3℃ or ±3% of the reading, whichever is greater
Voltage: 5V DC
Palette: 8 built-in palettes
Lens parameters: 4mm, 6.8mm, 9.1mm, and 11mm are supported
Focus mode: Manual focusing/fixed focus
Picture save: SD card
Photograph: Photos of MJEG format
Laser ranging: TTL interface is provided, for which it can be equipped with different laser ranging modules
Key: A key board including 4 keys is provided, for which it can adjust the function sequence according to a customer’s requirements
Overview

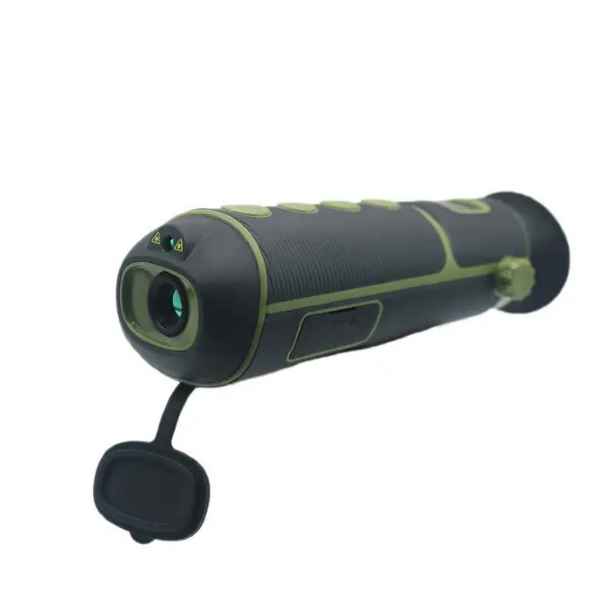

N-12 night vision device module is specially used for infrared thermal imaging night vision products, which contains a complete set of solution components such as objective lens, eyepiece, thermal imaging component, key, circuit module and battery. A consumer may complete the development of an infrared thermal imaging night-vision device in no time, with only the appearance design to consider.
Product Features
The module is complete, with no need to consider additional development;
The resolution of 256 * 192 provides clear image and supports a variety of palettes;
Photograph and storing photos with SD card are supported;
HDMI video output is supported, for which it can be connected to an external screen for video output;
USB charging and image copying are supported;
A four-key design, with power supply, photographing, electronic amplification (1x/2x/4x amplification), palette, laser indication and other functions;
Laser indication is supported;
LCOS screen is adopted for the eyepiece, with a resolution of 720 * 576;
It can be connected with laser ranging module;
