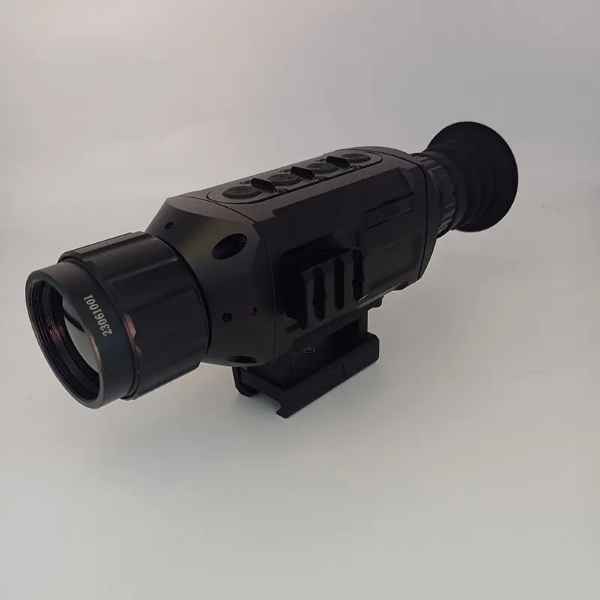

DYT GS Thermal Imaging Riflescope (384 x 288, -10℃~+50℃)

Infrared

Detector resolution: 384 x 288

Spectral range: 8~14um

Refresh rate: 25Hz

NETD: 45mK@25℃

Object pieces

Lens: 35mm F/1.0

FOV: 11°x 8°

Focus mode: Manual

Focus range: ≥2 meters

Eyepieces

Eyepieces resolution: 1024 x 768

Diopter adjust: ±6.00DS

Zoom: 14X: Display type

OLED

Display resolution: 1024 x 768

Display size: 0.39 inch

Functions

Zoom: 1X，2X，4X，8X

Palette: Iron red、white hot、black hot、green、rainbow、red hot

Hot spot: Support

Photograph: Support

WIFI: Support

Storage: Built-in EMMC 32G

Lightness adjust: 5 level

Laser range: Optional laser range via USB interface

Transmission: USB Type-C、HDMI

Power supply

Battery: 4 x CR123A detachable battery

Duration time: ≤5 hours

Power charging: Charging with external battery pack or using disposable batteries

Working/storage

Working temperature: -10℃~+50℃

Storage temperature: -20℃~+60℃

Anti-shock: ≤900g

Water proof: IP67

Size/weight

Shock mount: Different type for options

Net weight: 740g

Size: 227mm x 60mm x 83mm

Detection distance

Vehicle: ≤3450 meters

Human: ≤2300 meters

Boar: ≤2060 meters

Recognition distance

Vehicle: ≤880 meters

Human: ≤580 meters

Boar: ≤520 meters

GS series packing list：

GS thermal imaging rifle scope: 1

USB Type-C cable: 1

HDMI cable: 1

Changeable shock mount: 1

User manual: 1

Warranty card: 1

1. Overview

GS series thermal riflescope have a variety of models to choose from, meeting the shooting needs of short, medium, and long distances. At the same time, it also provides the function of an external laser rangefinder, which automatically cooperates with the aiming reticle to achieve fast and accurate shooting. The product has a strict moisture-proof and waterproof design, suitable for all-weather outdoor and indoor use.

Detachable battery, easy to replace, suitable for outdoor use

Adaptive AGC/DDE image technology

0.39-inch OLED display with 1024*768 resolution

Built-in EMMC memory chip for photo storage

Waterproof grade IP67

2 different shock mounts to meet the use of different guns

A variety of models with different functions

Support optional laser range finder

2.Precautions:

- Regardless of whether the thermal riflescope is turned on or off, do not let the lens and eyepiece directly face high-intensity radiation sources such as the sun, lasers, and electric welding, otherwise the warranty will not be covered for damage. When the product is not in use, the lens cap should be covered in time.

- When the thermal riflescope is not in use, and during transportation, please place the thermal riflescope in a protective box to avoid damage.

- Please take out the battery when you do not use thermal riflescope for a long time.

- To wipe the thermal imaging lens, it needs to be wiped with alcohol wiping fluid

3. Additional options

Support two type of shock mount

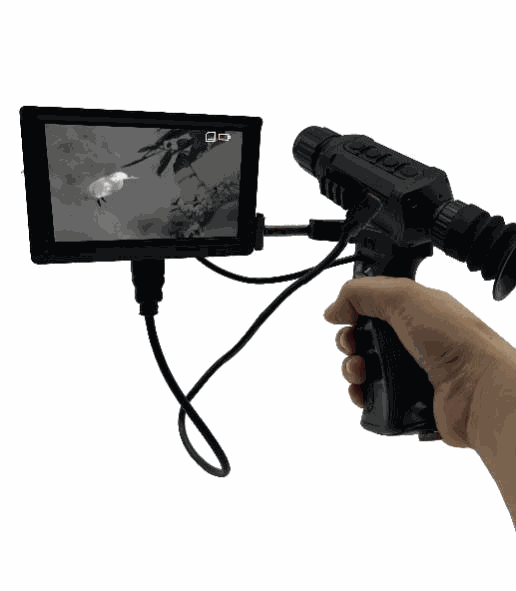

Support handheld 1080P 5 inch LCD

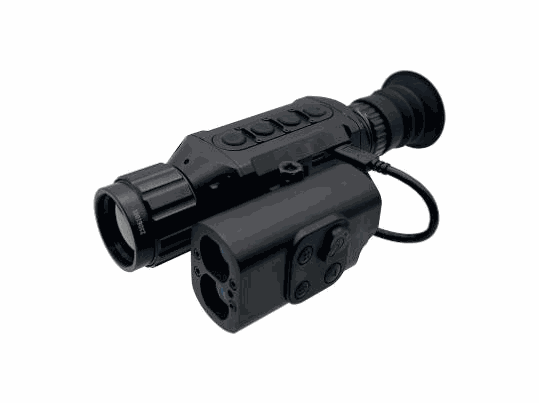

Support extra laser range finder

4.  Image

200 meters building

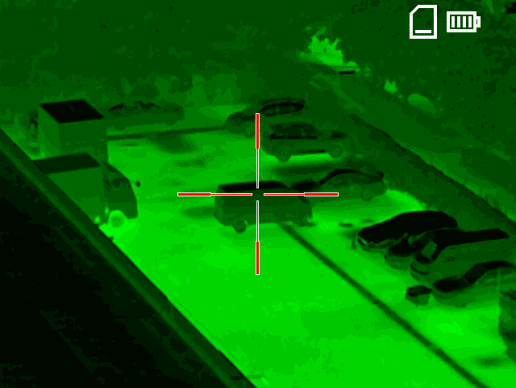

400 meters vehicle

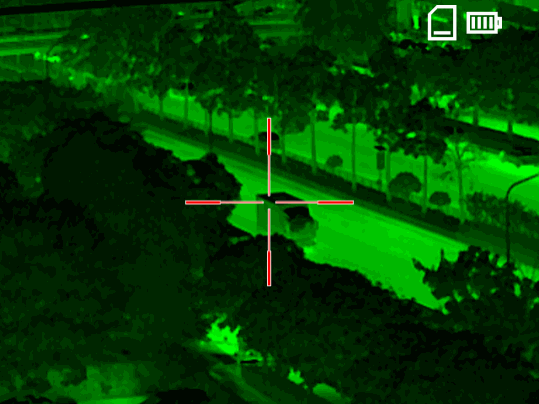

600 meters driving vehicle
