Infrared resolution: 384*288
Spectral range: 8~14um
Refresh rate: 50 Hz
NETD: <40mK@25℃
Measurement range: -20℃~1200℃ (can be customized)
Measurement accuracy: High enhancement(-20℃~200℃) (±2℃,±2%),low enhancement(200℃~1200℃) (±5℃)
Lens: 10mm/F1.0
Focus: Fixed 0.5m~¥
Measurement mode: Center point, high and low temperature tracking, regional temperature measurement, support temperature alarm function, color bar display function, temperature unit can be set in Fahrenheit, Celsius, and Kelvin
Screen: 3.5-inch high temperature resistant display, screen brightness supports automatic adjustment
Image mode: Infrared thermal
Display mode: Basic fire mode, black and white fire mode, fire mode, search and rescue mode, heat detection mode
WIFI: Support
Buttons: 3 button and 1 trigger
Battery: Removable battery, explosion-proof battery, equipped with charging box for charging
Battery specs: Pluggable and replaceable battery compartment, supports explosion-proof and high-temperature resistance
Photo: Support full radiometric temperature picture
Video record: Support
Storage: Standard 64G SD card,max support 256G
Mobile phone scan: Support WIFI connect to mobile phone, operate on APP
Professional analysis software: Supports professional analysis software, which can analyze temperature photos, temperature videos, report output, and temperature curves
Protection level: IP67,2 meters drop test
High-temp resistant level: Work 30 minutes at 80℃,work 10 minutes at 120℃,work 5 minutes at 260℃
Weight: 970g
Size: 110×248 mm
Packing list
Main unit: 1pcs
Charger: 1pcs
Adapter: 1pcs
Battery: 1pcs
Shoulder strap: 1pcs
USB type-C cable: 1pcs
SD card: 1pcs
Card reader: 1pcs
Instruction manual: 1 pcs

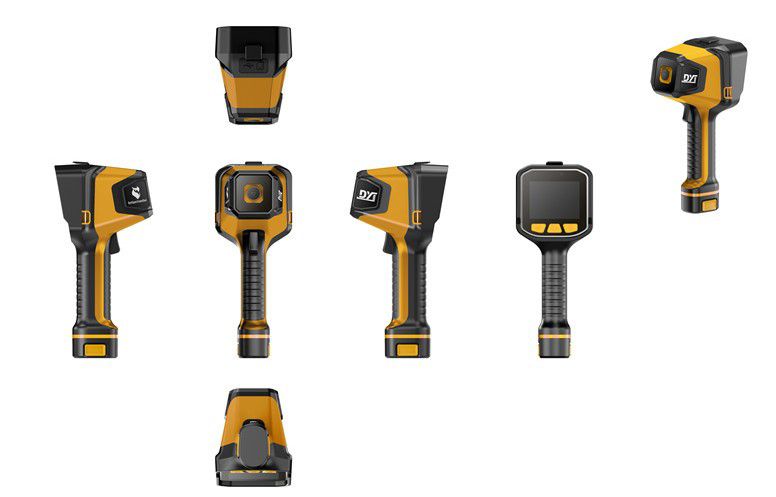

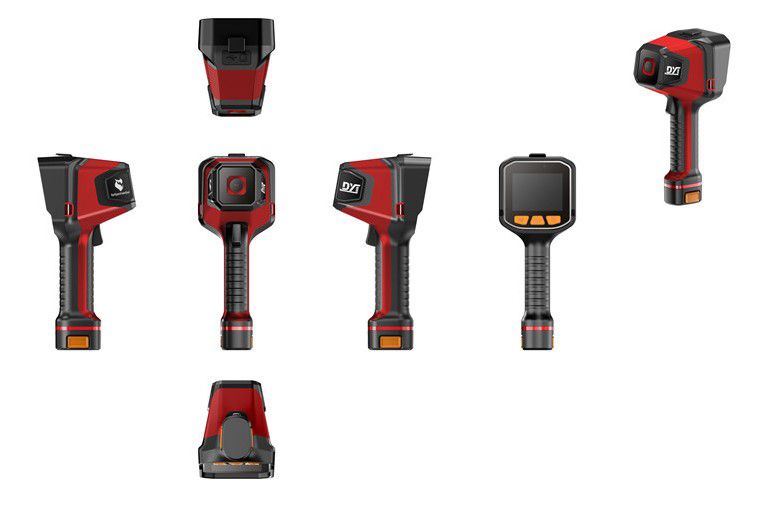

Dianyang Technology Company's FC series firefighting thermal camera is specially designed for fire-fighting thermal imaging applications. It is fire-resistant, waterproof, and anti-fall. It can detect fire sources at high-temperature fire scenes, conduct search and rescue, and provide ultra-clear images.

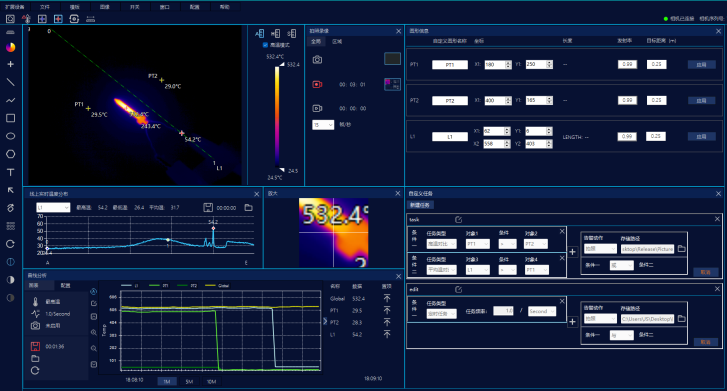

Professional analysis software

Support full temperature photo analysis
Support playback analysis of full temperature video.
Support data analysis reporting function of 25 frames/second super data video;
Support setting different emissivity in multiple areas to show more realistic temperature;
Support multiple measurement functions such as isotherms, online temperature distribution, amplified temperature
measurement, etc.
