IR Resolution:384×288
Focal Length:15mm/F1.0
Pixel Size:17μm
Thermal Sensitivity/NETD:≤50mK@25℃
Detector Type:Uncooled microbolometer
Digital Zoom:1x-8x (integer)
Image Frequency:30Hz
Focus Mode:Manual focus
Temp Measuring
Object Temperature Range:-20℃~600℃ (customizable, up to 1600℃)
Accuracy:±2℃ or ±2% take the max (ambient temp 25℃)
Temperature Screening:Supports multiple temperature screening modes, such as high temperature, low temperature, and interval temperature
Temperature measurement model: Support 1 global, 8 local (including point, line segment, rectangle), 1 central point temperature measurement, temperature monitoring accords to different areas
Alarm Function:Customize alarm temperature thresholds to monitor temperature anomalies such as high, low, interval temperatures in realtime
Display
Screen:4.3 “LCD capacitive touch screen
Display Type:Highlight industrial display, visible in sunlight, capacitive touch
Display Resolution:800*480
Screen Display Mode:Visible light, thermal imaging, dual band fusion, picture in picture
Imaging Technology:Independent R & D of image processing algorithm, support PHE
Dual band fusion Imaging Mode: High screen fusion precision & High degree of scene restoration
Visual Camera Pixels:500W
Color Palettes:Supports black heat, white heat, iron red, high contrast, red saturation, jet mode
Fill-in Light:Supports quick on-site light filling
Professional Functions
Video:Supports real-time capture and video recording
Video Playback:Support file playback, storage according to time classification, easy to find
Laser Designation:Support
Data Management
Data Storage:Supports two modes: single shot and continuous shot
Interfaces:USB Type-C, TF card, Mini-HDMI
Storage Capacity:32G
Field notes:Support to add voice (45s) and text annotation (100 words)
General Specifications

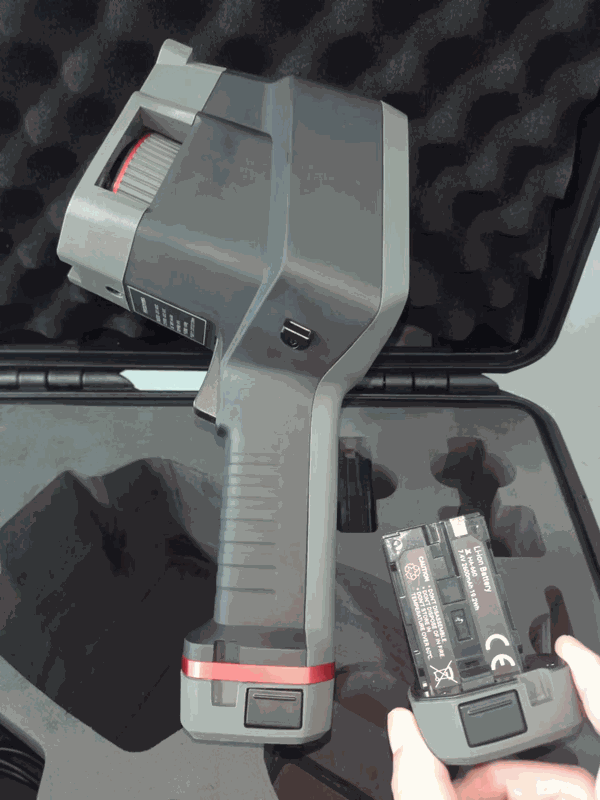

Battery Type:Lithium-ion batteries, 7.4V 2600mAH
Battery Operating Time:Double battery 8h total, can be replaced on site
Charging type:Charging base charging or Type-C interface charging
Operating Temp Range:- 10℃~+50℃
Protection Level:IP54
Grade of fall protection:2m
Volume:275mm×123mm×130mm
Weight:≤900g

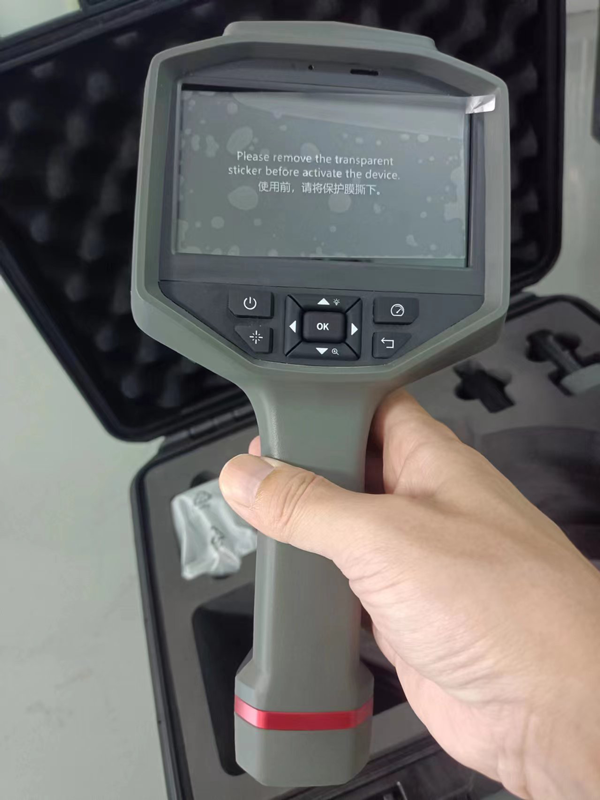

DYT HandHeld Professional Thermal Camera DP-38/DP-64 is a new generation of handheld thermal imaging product integrating visible light and infrared light, with built-in high sensitivity infrared detector and high resolution visual camera, which can sense the ambient temperature changes quickly and accurately measure the temperature of high temperature targets in the environment. Combined with dual-light fusion, picture-in-picture and other image processing technologies, thermal imaging and visible image fusion overlay can be realized to help field personnel quickly troubleshoot faults, assist decision-making and ensure safety
Application
Power line failure detection
Device defect detection
Printed circuit board troubleshooting
HVAC repair
Car repair
Pipeline leakage
Property management
