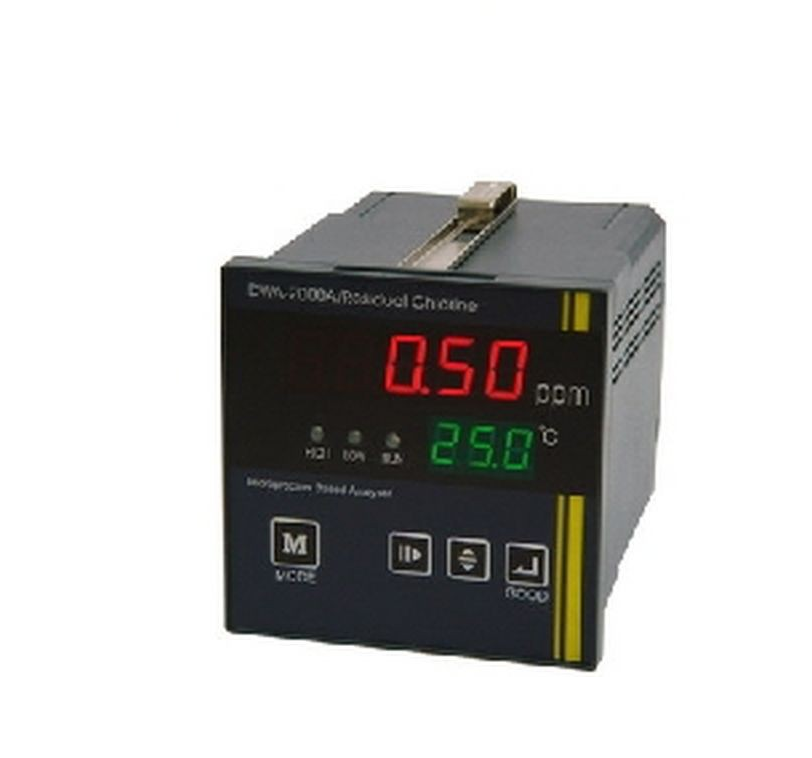

DYS DWA – 3000A-RC Analyzer and control RC - 4 points SET

Name: DYS DWA – 3000A-RC Analyzer and control RC - 4 points SET
Brand: DYS

ManufacturerDYS(View more products from this manufacturer)

ModelDWA-3000A-RC

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Function / Features

- Certificate : New Excellent Product (NeP)
- Certificate : Certificate of Patent
- Certificate : Certificate of CE
- English Display
- Real Time Trend Graph Function
- Relay Contact output (4 contacts) - HH, H, L, LL
- Simple Operation by 7 Keypad Button
- Large Size LCD Screen (160*128)
- Back-Light LCD
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- RS-232(Std.), RS485(option) Communication
- Automatic Cleaning(beads cleaning)
- Wall Mounting / 2B pipe Stanchion Mounting
- Microprocessor-based Digital Program Controller

Specifications - Code No. : 413130001RC
- Model : DWA-3000A-RC
- Channel : Single channel
- Range : 0 ~ 2, 0~10 mg/L (Resolution: 0.01)
- Measuring Method : Galvanic or polarograph
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ± 3% of F.S
- Repetition & Reappearance : ± 3% of F.S
- Response time : 120 sec(90% saturation)
- Analog output : 4~20mA DC(STD.)
- Digital output : RS-232C, RS485
- Relay output : HH, H, L, LL (4 contacts)
- Display : Trend graph, measuring value, Temp
- Humidity : max. 90%(non-condensing)
- IP Rating : IP65
- Size : 240(W)x180(H)x115(D)
- Installation : Wall mounting

OPTION:

	RC ELECTRODE	PRICES (USD)
1	RC ELECTRIC POLE FOR ONLINE POOL, WATER TREATMENT, BODY IN STAINLESS STEEL Model R70 Manufacturer: DYS - Korea - Electrode RC online using the appropriate measurement of domestic water and waste water pool - Electrode Type: Polaragraphic - Measuring range: 0-20 mg / l - Measurement Type: Flow through - Temperature Sensor: Pt1000 sensor - Not replaceable. - Body by SUS316L - Conditions of the sample: + Pressure: max. 0.1 Mpa + Flow: 50 ml / min + PH Scale: 4 - 8.2 pH + Temperature scale: 4 - 450C
2	POWER POLE RC ONLINE MULTI-PURPOSE, WITH BODY STAINLESS STEEL Model R122470 Manufacturer: DYS - Korea - RC online multipurpose electrode. - Electrode Type: Polaragraphic - Measuring range: 0.05 - 10 mg / l / 0.01 - 5 mg / l - Measurement Type: Flow through - Temperature Sensor: Pt1000 sensor - Not replaceable. - Body of SUS316L, POM, PTFE - Conditions of the sample: + Pressure: max. 0.1 Mpa + Flow: 50 ml / min + PH Scale: 4 - 8.2 pH + Temperature scale: 4 - 450C
3	RC ONLINE MULTI-USE POWER POLE AND MATERIALS BY acryl Model DLC-8046 Manufacturer: DYS - Korea - RC online multipurpose electrode. - Electrode Type: Galvanic - Measuring range: 0-2 mg / l - Measurement Type: Flow through - Temperature Sensor: Pt1000 sensor - Body bangAcryl - Conditions of the sample: + Flow: 1000 ml / min + Scale pH: 5.6 - 7.6 pH + Temperature scale: the 160C
4	ACCESSORIES FOR POWER POLE RC code 70 Manufacturer: DYS - Korea - Includes a bottle of electromagnet poles and three replacement membrane.
