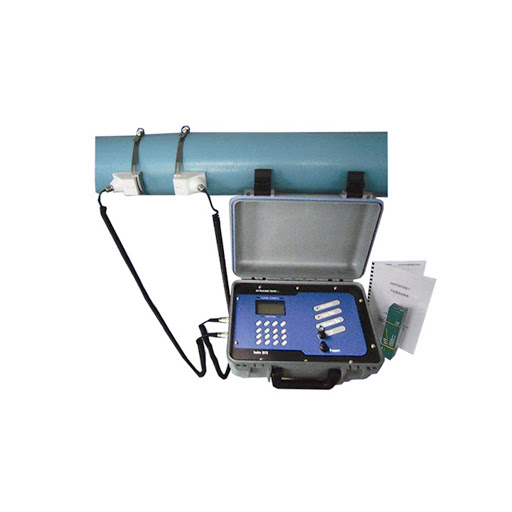

Dynaflox Series DMTFP Portable Transit Time Ultrasonic Flow Meters

Transmitter

Power Supply: Internal 7.2 AH Charging battery
Velocity: -0 ~ ±40 ft/s (0 ~±12m/s)
Display: LCD 4x16
Units Rate Totalized: User Configured (English and Metric);
Output: 4~20 mA, pulse, relay, RS232; options: up to 8 GB Data logger
Accuracy: ±1.0% ~2.0 % of reading at rates >0.5 m/s
±2.0 % of reading at rates <0.5 m="" s="" br=""> Sensitivity: Flow Rate: 0.001ft/s (0.0003m/s)
Repeatability: 0.2% of reading
Security Keypad lockout, access code enable
Dimension and weight: 358x250x150 mm Weight: <6kg

Transducer
Liquid Types Supported: Virtually most any liquid containing less than 2% total suspended solids (TSS) or aeration
Suited Liquid Temperature:
Std. Temp.: -40℃~121℃
High Temp.: -40℃~250℃( for clamp-on), -40℃~150℃ ( for insertion )
Cable length: standard 6m, can be optional max. 300m.
Pipe Size option:
L type transducer: DN1000 - 25000
Std transducer: DN40-1000
S type transducer: DN15-50
K round clamp transducer: DN15-50
Dimension:
S size: 42 x 25 x 25 mm, <0.3 kg="" br=""> M size: 60 x 43 x 43 mm, <0.6 kg="" br=""> L size: 80 x 53 x 53 mm, < 1.0 kg
