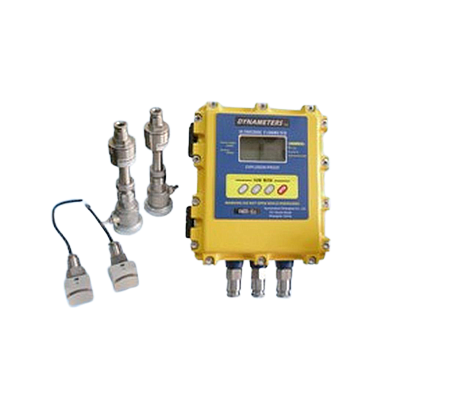

Dynaflox DMTF-Ex Explosion-proof Doppler Ultrasonic Flow Meter

Accuracy: 0.5%~2.0 % F.S
Flow velocity range: 0.05 m/s~12m/s
Transmitter
Enclosure: NEMA4 x [IP65], cast aluminum
Dimension: 310Lx226Wx127H mm
Power supply: 24 VDC+-5%, 2.5 VA max
Display: 2x8 LCD
Output: 4-20mA
Temp.: -40 + 70 C

Transducer
Measuring range: 0.05 m/s ~ 12m/s
Type: Insertion and clamp-on
Liquid temp.: Std: -40+121C. Opt: -40+250 C -40~150 for insertion )
Cable length: std : 6m . Opt: 300m
Housing material:
Clamp-on: Aluminum
Insertion : Stainless steel
Protection class:
Clamp-on: IP65
Insertion : Std: IP65. Opt: IP68

Selection table
