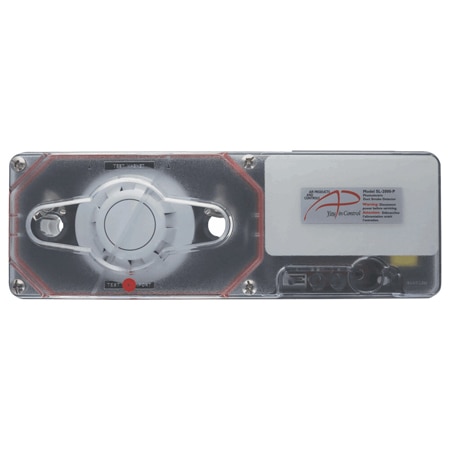

Dwyer SL-53546-021K Duct Smoke Detector for HVAC – Alerts, Deactivates Fans, Easy Install (Photoelectric, BOSEC, CE, CPR, DIBt, FG, LPCB, SBSC, VdS)

Weight: 2.5 lb

Materials: Plastic, Polycarbonate

Compliance: BOSEC, CE, CPR, DIBt, FG, LPCB, SBSC, VdS

Sensor Type: Photoelectric

Supply Voltage: 9 to 33 Vdc

Compliance Note: cULus (UL 268A) file # S2829, CSFM listed (3240-1004:105), MEA accepted (73-92-E; VOL. 27).

Air Velocity, Max: 4000 FPM

Air Velocity, Min: 100 FPM

Electrical Rating: 10 A @ 115 Vac

Enclosure Ratings: IP10

Relative Humidity: 10-85% RH No-Condensing

Supply Power Type: DC

Electrical Connection: Screw Terminal

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C

Datasheet
