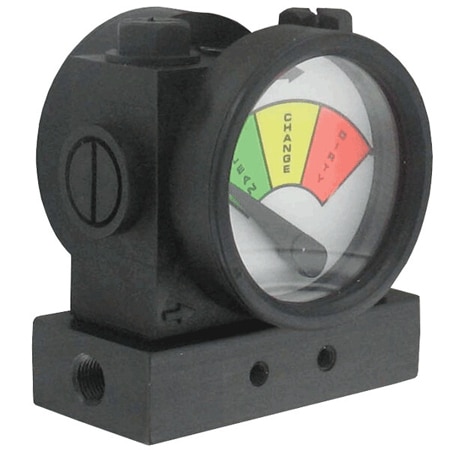

Dwyer PFG2-02 Inline Filter Differential Pressure Gauge - 1/8" NPT, Clean/Dirty Zones (Differential, 5 psi, NPT Female, 1/8 in)

Dual: false

Weight: 272.2 g

Accuracy: ± 5 %

Materials: Glass Filled Polyamide, Polyester, Aluminum, Fluoroelastomer

Pressure Note: Green Zone 0 to 2.5 psi, Yellow Zone 2.5 to 3.75 psi, Red Zone 3.75 to 5 psi

Pressure Type: Differential

Pressure, Max: 5 psi

Pressure, Min: 0 psi

Pressure Limits: Up to 300 psi

Materials, Wetted: Aluminum, Fluoroelastomer, Glass-filled Nylon, Stainless Steel

Media Compatibility: Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids

Mounting Orientation: Not Position Sensitive

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Operating Temperature, Max: 200 °F

Operating Temperature, Min: 0 °F
