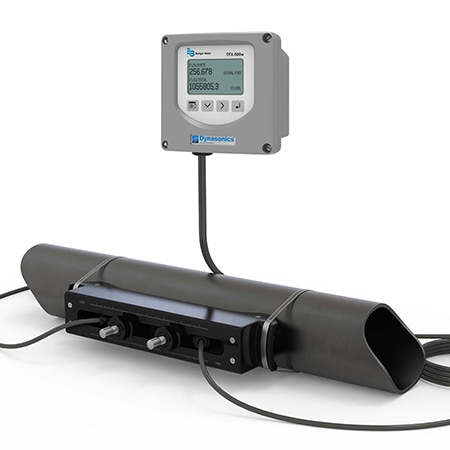

Dwyeromega DW-G-KZ-F-S-AC-WW-XX-G-F Clamp on Transit Time Ultrasonic Flow Meter For 2.5 in to 10 in Pipes (10 in, Pipe Remote mount, Easy Rail)

Keypad: Yes

Accuracy: ± 1 %

Software: SoloCUE

Materials: 316 Stainless Steel, Polycarbonate

Form factor: Pipe Remote mount

Pulse Rates: 100 Hz

Cable Length: 15 ft

Display Note: Keypad: 4-button navigation, membrane keypad with domed tactile feedback Resolution: 128 × 64 pixel LED backlit graphical display; adjustable brightness and timeout

Display Type: LED

Output Detail: Pulse / Frequency /Digital : Two outputs, each selectable as frequency, pulse, forward/reverse flow or alarm output; isolated open collector, 5-30V DC, 50 mA maximum, externally or internally sourced with pullup resistor Digital alarm output: configurable high or low Frequency output: 63 Hz-10 kHz maximum Pulse (totalizer) output: 100 Hz maximum output open collector, pulse width 5-500 ms programmable Analog Output: 0-20 mA and 4-20 mA drive up to 800 Ohms; minimum 16-bit resolution, isolated Open Collector Output: 5 to 30 Vdc, max. 50 mA externally or internally sourced

Repeatability: ±0.2%

Reserved Type: Standard

Velocity, Max: 40 ft/s

Velocity, Min: 0.1 ft/s

Certifications: CE

Data Interface: BACnet MS/TP, Modbus RTU, USB

Pipe Size, Max: 10 in

Pipe Size, Min: 2.5 in

Supply Voltage: 9 to 28 Vdc

Transducer Type: Easy Rail

Display Language: English, French, German and Spanish selectable

Measurement Type: Transit Time

Electrical Output: 4 to 20 mA, Two Pulse, Frequency

Enclosure Ratings: IP65

Number of Outputs: 4

Supply Power Type: DC

Calibration Option: Factory Calibrated

Repeatability Note: ±0.2% of reading

Process Temperature, Max: 121 °C

Process Temperature, Min: -40 °C

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
