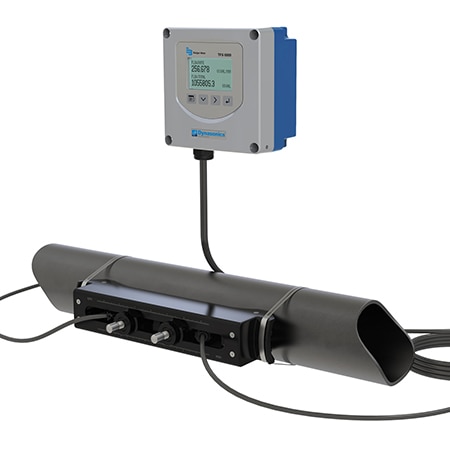

Dwyeromega DQ-G-KZ-R-S-AF-WW-S-XX-S-G-F Clamp on Ultrasonic Flow Meter/Data Logger For 2.5 in to 48 in Pipes (0 GPM, 12 in, Pipe Remote mount, Easy Rail)

Keypad: Yes

Accuracy: ± 1 %

Software: SoloCUE

Materials: PVC, CPVC, HDPE, PTFE, PDVF, Stainless Steel, Ductile Iron, Aluminum, Brass, Carbon Steel, Copper

Form factor: Pipe Remote mount

Pulse Rates: 5 KHz

Cable Length: 30 ft

Display Note: Keypad : 4-button navigation, keypad with tactile feedback; polyester film Display128 × 64 pixel LED backlit graphical display; adjustable brightness and timeout; polycarbonate window

Display Type: LED

Output Detail: 4-20 mA output:One 16-bit, isolated, max 800 Ohms, internal or external power Digital output:Two selectable pulse, alarm, flow direction, sink isolated open collector, 5-30V DC, max. 50 mA externally or internally sourced Frequency output: 50% duty cycle, 63-10k Hz maximum frequency Pulse (totalizer) output: 5 kHz max. output, open collector, pulse width 5-500 ms programmable Optional: Two dry contact output for alarm or flow direction 30V DC max., 5A max. (Ethernet not available with this option); Open Collector Output: 5 to 30 Vdc, max. 50 mA externally or internally sourced

Repeatability: 0.002

Velocity, Max: 40 ft/s

Velocity, Min: 0.1 ft/s

Certifications: CE

Data Interface: BACnet MS/TP, Modbus RTU, USB

Pipe Size, Max: 12 in

Pipe Size, Min: 2.5 in

Supply Voltage: 110/220 Vac

Transducer Type: Easy Rail

Display Language: English

Measurement Type: Transit Time

Number of Digits: 8

Electrical Output: 4 to 20 mA, Two Pulse, Frequency

Enclosure Ratings: IP67, NEMA 4

Number of Outputs: 4

Relative Humidity: 85% non condensing

Supply Power Type: AC

Calibration Option: Factory Calibrated

Repeatability Note: 0.2% above 1.5 ft/s

Electrical Connection: 1/2 in NPT female Conduit with Poly Cable Glands

Process Temperature, Max: 121 °C

Process Temperature, Min: -40 °C

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -40 °C

Volumetric Flow Rate, Max: 4000 GPM

Volumetric Flow Rate, Min: 0 GPM

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
