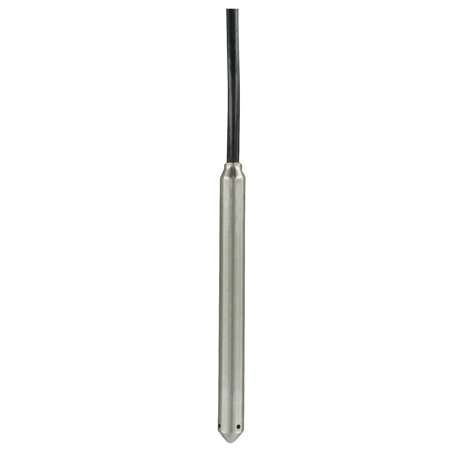

Dwyer MBLT-2SC-IVPM-10-15.2 Mini Submersible Level Transmitter, 0.63 in, ± 0.10% Acc, 316 SS (14.21 psi)

Weight: 0.96 kg

Accuracy: ± 0.25 %

Mounting: Suspended Below Point Being Monitored

Compliance: CE

Protection: Surge/Lightning Protected Per EN61000-4-5, Class 5

Cable Length: 15.2 m

Output Detail: 4 to 20 mA DC, 2-wire

Output Signal: Current

Pressure, Max: 14.21 psi

Response Time: < 50 ms

Proof Pressure: 2x Full Scale

Supply Current: 5 mA

Supply Voltage: 10 to 33 Vdc

Thermal Effect: ± 0.45% FS TEB

Electrical Output: 4 to 20 mA

Materials, Wetted: Fluoroelastomer, Polyether, Polyolefin, Polyurethane, Stainless Steel

Supply Power Type: DC

Media Compatibility: Consult Factory

Electrical Connection: Pigtail Leads

Voltage Output Impedance: 10 Ω + 4.4 Ω / 100' cable

Operating Temperature, Max: 176 °F

Operating Temperature, Min: -4 °F

Compensated Temperature, Max: 70 °C

Compensated Temperature, Min: 0 °C

Material Construction Option: Polyether Polyurethane cable jacket

material-construction-option: Polyether Polyurethane cable jacket
