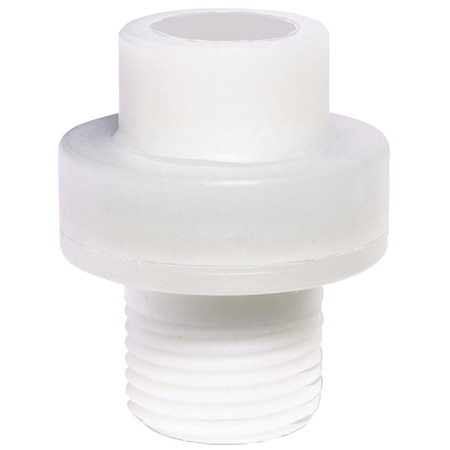

Dwyer GG1 Gage Guard for Pressure/Vacuum, Polypropylene, Inorganic Compatibility (1/2 in x 1/4 in, NPT Male and Female)

Accuracy: ± 4 %

Diameter: 1.375 in

Pressure Limits: Liquids: Up to 160 psi; Gas: Up to 30 psi

Sensor Material: Polypropylene, Nitrile Rubber

Media Compatibility: Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water

Pressure Limits Note: Liquids: 160 psi (11 bar) @ 70 to 185°F (21 to 85°C); Gases: 100 psi (6.9 bar) @ 70 to 100°F (21 to 38°C) and 30 psi (2.1 bar) @ 100 to 185°F (38 to 85°C)

Process Connection Size: 1/2 in x 1/4 in

Process Connection Type: NPT Male and Female

Operating Temperature, Max: 185 °F

Datasheet
