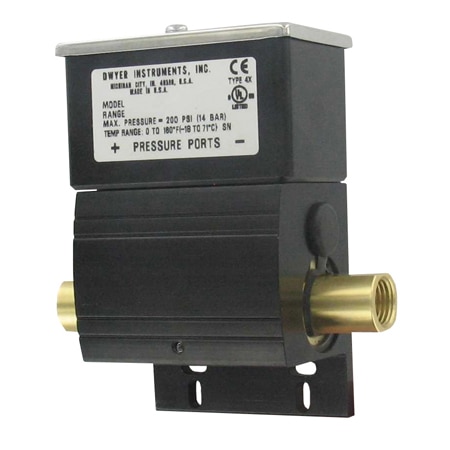

Weight: 0.54 kg
Deadband: 3.5 to 6 psi
Materials: Aluminum, 300 Stainless Steel, Polycarbonate
Compliance: CE, cULus
Switch Note: SPDT snap switch, 5 A @ 125/250 VAC (~), 5 A res. @ 30 VDC (-)
Switch Type: SPDT NO/NC, Selectable
Pressure Type: Differential
Pressure, Max: 50 psi
Pressure, Min: 25 psi
Repeatability: ± 2%
Switch Rating: 5 A @ 125/250 Vac, 5 A @ 30 Vdc
Proof Pressure: Up to 200 psi
Pollution Degree: 2
Enclosure Ratings: IP65, NEMA Type 4X
Materials, Wetted: Brass, Fluoroelastomer
Relative Humidity: 80% (Non-Condensing)
Media Compatibility: Consult Factory
Vibration and Shock: Set point repeats after 2.5 Gs, 5 to 500 Hz. Set point repeats after a 15 Gs, 10 millisecond duration
Mounting Orientation: Horizontal Ports
Set Point Adjustment: External Screw
Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block
Operating Environment: Intended for Indoor and Outdoor Use
Process Connection Size: 1/4 in
Process Connection Type: NPT Female
Operating Temperature, Max: 140 °F
Operating Temperature, Min: 30 °F
