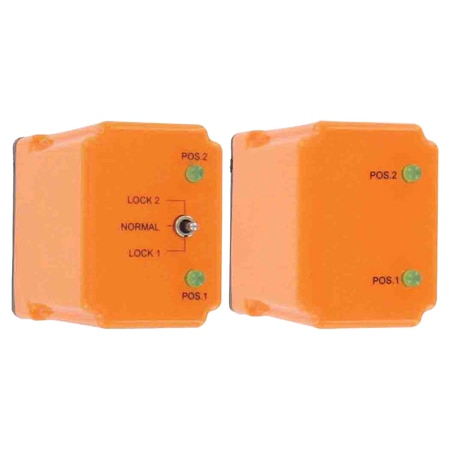

Dwyer DPC-CCL Duplex Pump Controller for Auto Sequencing & Longevity, LED Indicators
Manufacturer: Dwyer Model: DPC-CCL - Contact
Weight: 4.5 oz
Mounting: 8-pin Octal
Materials: Polycarbonate
Compliance: cUR, UR
Switch Note: 10 A @ 240 VAC resistive, 1/8 hp @ 120 VAC, 1/4 hp @ 240VAC inductive, 360 VAC@ 240 VAC inductive
Switch Type: SPDT NO/NC, Selectable
Control Mode: Duplexing On/Off with Sequence Lock
Switch Rating: 10 A @ 240 Vac, 1/8 hp @ 120 Vac, 1/4 hp @ 240 Vac, 360 Vac@ 240 Vac
LED Indicators: 2 LED’s Show Active Output Relay
Supply Voltage: 240 Vac
Power Consumption: 3 VA
Supply Power Type: AC
Switching Current: 1 mA
Storage Temperature, Max: 185 °F
Storage Temperature, Min: -40 °F
Operating Temperature, Max: 131 °F
Operating Temperature, Min: -4 °F
