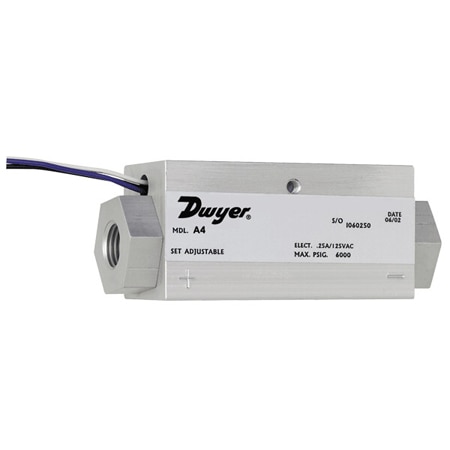

Dwyer A4-5 A4 Rugged Differential Pressure Switch, Adjustable, 6000 psig, Piston (Differential, NPT Female, 1/8 in)

Weight: 241 g

Compliance: CE

Wire Gauge: 24 AWG

Switch Type: SPDT NO/NC, Selectable

Pressure Type: Differential

Repeatability: ± 2 psi

Switch Rating: AC: 3 VA, 0.25A @ 120 VAC; DC: 5 VA, 0.25A @ 175 VDC

Proof Pressure: Up to 2000 psi

Materials, Wetted: Aluminum, Steel

Media Compatibility: Consult Factory

Mounting Orientation: Not Position Sensitive

Electrical Connection: Pigtail Leads

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Decreasing Set Point, Max: 120 psi

Decreasing Set Point, Min: 35 psi

Increasing Set Point, Max: 250 psi

Increasing Set Point, Min: 120 psi

Operating Temperature, Max: 225 °F

Operating Temperature, Min: -65 °F
