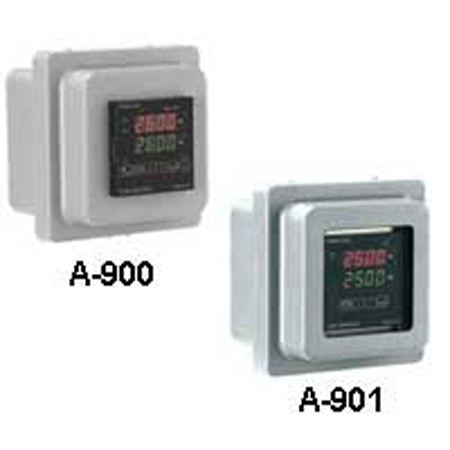

Dwyer A-901 NEMA 4X Weatherproof Housings for Indoor/Outdoor Use - A-900 & A-901

Width: 7.75 in

Height: 7.75 in

Length: 4.25 in

Materials: Polycarbonate, Polyester Nonwoven Fabric, Neoprene, Stainless Steel

Compliance: UL

Enclosure Ratings: IP66, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X

Recommended Current: 77°F (25°C) 10 amps

Operating Environment: Indoor or Outdoor

Operating Temperature Note: 77°F, 104°F, 131°F. When using the enclosures with controls that have 10 A relay outputs the extra heat generation decreases the maximum ambient temperature value that the control can be used at inside the enclosure. Other outputs on our controls are not a concern

Operating Temperature, Max: 131 °F
